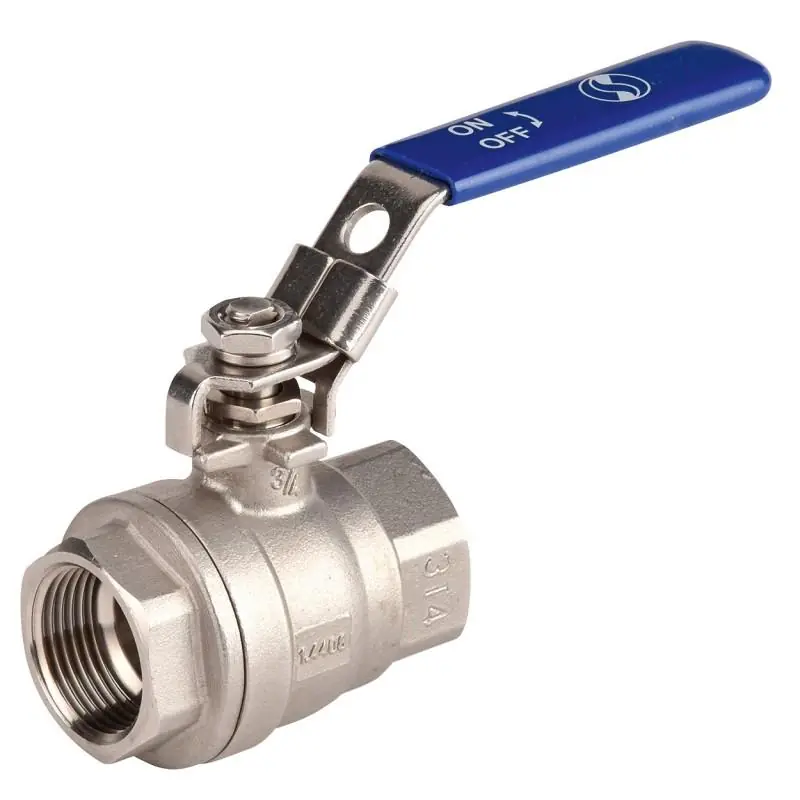

The 1/4 Turn Stainless Steel Female/Female Ball Valve is engineered for efficient fluid control in various applications, including water, compressed air, and saturated steam systems. Its robust construction and user-friendly design make it a reliable choice for both industrial and marine environments.
- Full Passage Design: Ensures maximum flow with minimal pressure drop.
- Lockable Handle: Provides secure operation and prevents accidental adjustments.
- Temperature Range: Suitable for media temperatures from -20°C to +180°C.
- Threaded Connections: Equipped with BSP threads for easy installation.
Technical Specifications
- Material:
- Body: AISI 316 Stainless Steel (ASTM A351-CF8M)
- Ball: AISI 316 Stainless Steel (ASTM A479-TP316/A351-CF8M)
- Stem: Stainless Steel ASTM A182 F316
- Seals: PTFE
- Pressure Rating: PN63 (approximately 63 bar)
- Thread Standard: BSP (British Standard Pipe)
- Handle Material: AISI 430 Stainless Steel
Dimensions
- Size: 1/4 inch
- Overall Length (C): 110 mm
- Width (B): 44 mm
- Height (A): 53.5 mm
Compatibility Information
This valve is compatible with standard BSP threaded piping systems and is suitable for applications involving water, compressed air, and saturated steam within the specified temperature range.
