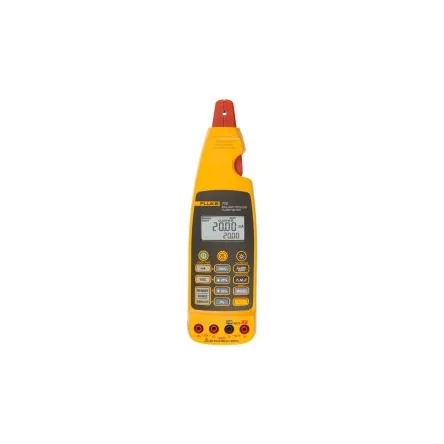

Fluke 773 Clamp Meter, 100mA dc

Model Number = 773
DC Current Measurement Resolution = 10µA
Jaw Capacity Busbars = 4.5mm
Minimum Operating Temperature = -10°C

4 AA alkaline batteries, test lead set with integral prods and 2 crocodile clips; test leads with integral grabber clips; soft carry case ; instructions. For details of the 771 process clamp meter see stock no. 287-642. Fluke 773 Milliamp Process Clamp Meters. If you need more time in your busy day take a good look at the Fluke 772 and 773 mA Clamp Meters. Designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system. Here are some specific ways the Fluke 773 clamp meter will help you:. Measure mA signals for PLC and control system analog I/O without breaking the loop Measures low level dc current Correlate process indication with real physical value Measure output signals from transmitters without breaking the loop Maintain and troubleshoot process and automation equipment without breaking the loop No disruption to the process Detachable clamp with extension cable Measurements in tight locations Enables measurements in difficult situations Measurement Spotlight Illuminates hard to see wires in dark enclosures Measurement process is easier and quicker Measure up to 99.9 mA range non-contact Wide range of measurements Measures 10 to 50 mA signals in older control systems Automatic power off After 15 minutes and 2 minute automatic off for backlight and spotlight Saves battery life Want simultaneous mA source/measure? Consider the Fluke 773 Milliamp Clamp Meter. Features and Benefits. Best in class 0.2% accuracy 0.01 mA resolution and sensitivity Measure 4 to 20 mA signals without breaking the loop Measure mA signals for PLC and control system analog I/O Dual backlit display with both mA measurement and percent of 4 to 20 mA span Measurement Spotlight illuminates hard to see wires in dark enclosures Detachable clamp with extension cable for measurements in tight locations Measure 10 to 50 mA signals in older control systems using the 99.9 mA range Automatically change the 4 to 20 mA output for remote testing Power saving features, auto-off, backlight timeout extend battery life Hold function captures and displays changing measurements Measure 4 to 20 mA signals with in-circuit measurement Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters Source 4 to 20 mA signals for testing control system I/O or I/Ps mA output linear ramp or 25% step output Automatically change the 4 to 20 mA output for remote testing. Fluke 773 additional features:. DC voltage measurement to verify 24 V power supplies or voltage I/O signals Source dc voltage to test input devices that accept a 1 to 5 volt or 0 to 10 volt signal Scaled mA output corresponds to the 4 to 20 mA signal measured by the mA clamp enables a logging DMM or other device to record the 4 to 20 mA signal without breaking the loop mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal Voltage output linear ramp or 25 % step output Automatically change the voltage output for remote testing
