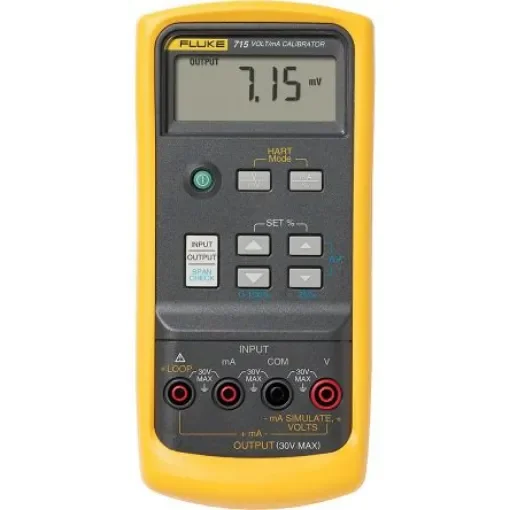

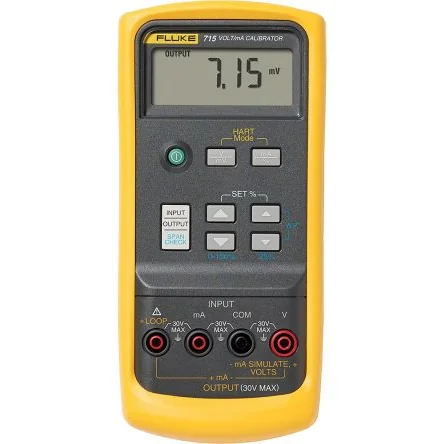

Fluke 715 Current & Voltage Calibrator, Max Voltage 20V, Max Current 24mA - FLUKE 715

Absolute Maximum Voltage Measurement = 20V
Absolute Maximum Current Measurement = 24mA
Best Accuracy = ±0.015 %
ATEX Approval = No
Power Source = Battery
Battery Type = 9 V
Dimensions = 52 x 98 x 201mm
Weight = 600g
Height = 201mm
Length = 52mm
Maximum Operating Temperature = +55°C
Maximum Source Current = 24mA
Minimum Operating Temperature = -10°C

Fluke Current and Voltage Loop CalibratorThe Fluke current and voltage calibrator delivers outstanding performance, durability and reliability. The calibrator measures loop current (0 mA to 20 mA, 4 mA to 20 mA) signals with 0.01% accuracy and 0.001 mA resolution. It can source precision voltage signals up to 20V with 0.01% accuracy. Offered in the rugged Fluke 80 series DMM package, the calibrator is compact, lightweight, and easy to carry. Its pushbutton interface makes it extremely easy to use, similar to the multifunction Fluke 750 calibrators. It is EMI tolerant, dust, and splash resistant and also features a removable battery door for quick battery changes.Features and BenefitsClear 5-digit LCD display Operating temperature ranges between -10°C and +55°C Measure voltage output process signals from PLCs, transmitters Source or simulate 24mA loop current Source voltage to 200mV or 10V Provides 24V loop supply with simultaneous current measurement Display mA or % of span Dimensions of 201 x 98 x 52mm in the format of (L x W x D) 250 ohm HART resistor with loop power Holster features test lead storage Compatible with tool pack magnetic hanging system Step and linear ramp output function Configurable zero and span settingsApplicationsElectrical servicing and maintenance Laboratories Electronic servicing and maintenance Industrial automationCertificationsCE certified CSA certifiedBuy Fluke products and claim another Fluke product free. Between 1st September 2021 and 15th December 2021 customers who purchase a Fluke product (inc. Fluke Networks) have the opportunity to claim a free product through the Fluke website with the original proof of purchase, invoice, or receipt. The product can be claimed via www.fluke.co.uk/freefluke. There are six levels of free tools to claim. They are separated based on the value of the qualifying purchase, starting at as little as only £100. For each level there is a fixed range of products to claim, based on the value of the original purchase.
