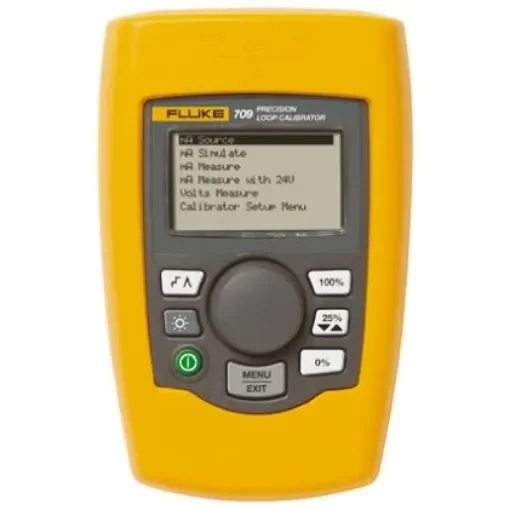

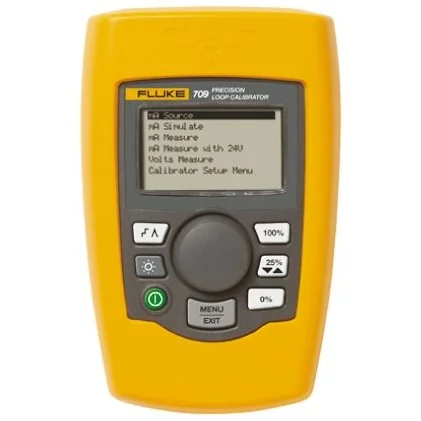

Fluke 709, Loop Calibrator - Fluke-709

Model Number p = 709
Battery Type = Rechargeable NiMH
Battery Life = 20 h
Power Source = Battery
Weight = 980g
Height = 150mm
Length = 54mm
Maximum Operating Temperature = +40°C
Minimum Operating Temperature = 0°C
Width = 90mm

AC72-1 alligator clips (2), TL75 test leads, soft case, 6 AAA batteries (installed), product manual, quick reference guide, safety information. Fluke 709 Precision Loop Calibrator. The Fluke 709 Precision Loop Calibrator reduces the time it takes to measure or source voltage or current and power up a loop. It is used for installation, calibration and troubleshooting field transmitters, valves and other control system components. Primary functions are source and measure mA signals in the range 0 to 24 mA. The Fluke 709 can measure 0 to 30 V and produce 24Vdc loop power. The 709H includes HART communication functionality and supports a select set of HART universal and common-practice commands. It can be used as a loop calibrator or basic function communicator. Intuitive interface with Quick-Set rotary encoder knob for fast setup and ease-of-use LCD graphic display 128x64 pixels with backlight and contrast adjust (.34 high digits) Best in class accuracy at 0.01% reading Simple two-wire connection for all measurements and protection up to 240Vac User-selectable 250O resistor Dedicated span and 25% step buttons 24Vdc loop power with mA Measure Mode (-25% to 125%) Resolution of 1µA on mA ranges and 1mV on voltage ranges Variable step ; ramp time in seconds Adjustable span selection (0 to 20 mA or 4 to 20 mA) Small (150x90x30mm), light (300g) and robust design Powered by 6 standard AAA batteries (supplied installed) Auto Shutdown to conserve battery life (adjustable up to 30 minutes) Protective holster (supplied) fits easily into user's hand
