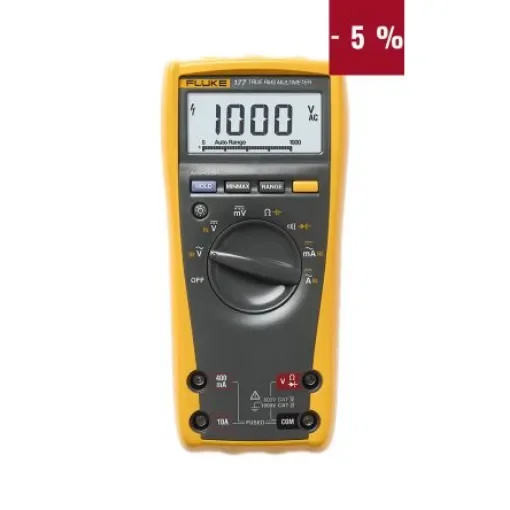

Fluke 177 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

Multimeter Type = Handheld
Model Number p = 177
Absolute Maximum DC Current Measurement = 10A dc
Absolute Maximum Capacitance Measurement = 9.999F
Maximum Frequency = 1kHz
AC Current Measurement Resolution = 0.01mA ac
AC Voltage Measurement Resolution = 0.1mV ac
Safety Category Level = CAT III, CAT IVnF
Weight = 420g

Fluke 177 Digital Mutlimeter (1 pair) Test leads 9V Battery (Installed) Quick reference guide. Fluke 177 True-RMS Digital Multimeter. Brought to you by Fluke, the 177 model is part of the versatile 170 series of Digital Multimeters. Suitable for a variety of measurement applications, the 177 is supplied with a TL76 test lead, instruction manual and 9v alkaline batteries. This model also features a display backlight for easier measurement reading. Fluke 177 Features and Benefits. 6000 count LCD with 33 segment bargraph True rms (a.c.) measurement EN61010-1 safety standard compliance to Cat IV 600V ; Cat III 1000V Resistance, continuity and diode measurement Capacitance measurement up to 10000µF Frequency measurement up to 100kHz Min/Max/Average recording Display and Auto Hold Separate battery and fuses access without breaking the calibration seal Compatible with Fluke Toolpak™ magnetic hook and strap hanger kit (stock no. ; 331-7402 331-7402 ). Additional Specifications. DC Current Accuracy: ±1 % DC Current Digits: +3 D DC Current Lowest Range: 60mA DC Current Highest Range: 10A DC Current Lowest Resolution;0.01mA AC Current Accuracy: ±1.5% AC Current Digits: +3 D AC Current Lowest Range: 60mA AC Current Highest Range: 10 A AC Current Lowest Resolution: 0.01mA AC Current Max Frequency: 1kHz Resistance Accuracy: ±0.9% / ±0.7% Resistance Digits: +1 D / + 2 D. Typical Applications. Fluke Digital Multimeters are a standard diagnostic tool and an ideal choice for technicians in the electrical/electronic industries. The 177 model measures AC and DC voltage 1000V and True-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements.
