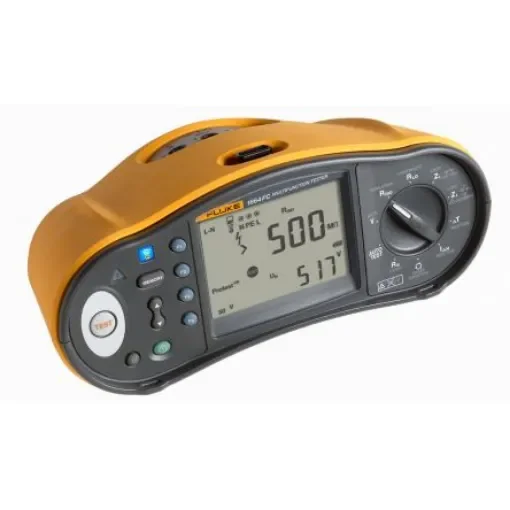

Fluke 1664FC Multifunction Tester, 50 V, 100 V, 250 V, 500 V, 1000 V , Earth Resistance Measurement With BLE, USB - FLK-1664FC DE

Loop Impedance Test Type = Phase to Earth, Phase to Neutral
Automatic RCD Test = Yes
Model Number p = 1664FC
Insulation Test Voltage = 50 V, 100 V, 250 V, 500 V, 1000 V
Maximum Voltage Measurement = 500V ac/dc
Earth Resistance Measurement = Yes
Downloadable Data = Yes
Interface Type = BLE, USB
Continuity Test Current = 10mA
RCD Test Type = A/F, AC, B/B+, G, S
Remote Switch Mode = Yes
IP Rating = IP40
Safety Category Voltage = 300 V, 500 Vmm

Fluke Multifunction Installation TestersThe Fluke 1660 series tester is the only installation testers that help prevent damage to connected appliances and also allow users to send test results wirelessly via smartphone directly from the field. They also ensure that fixed wiring is safe and correctly installed to meet the requirements of IEC 60364 and all relevant local standards. This tester contains the Insulation-Pre-Test™ safety function (patent pending). This function prevents you from performing tests with appliances that are connected to the system during a test, eliminating accidental damage. The autotest features reduce test time as it performs the five required installation tests in one sequence, including selectable Type A, AC and RCD autotest. It reduces the number of manual connections, decreases the possibility of making errors and reduces test time up to 40% as compared to the previous Fluke models.Features and BenefitsIncludes insulation pre-test that detects when appliances are connected to the system and stops the test Performs fast voltage measurement between L-N, L-PE and N-PE using the mains cord. No need to change measurement connections Runs seven installation tests automatically in one sequence with a single connection through auto test Compact, lightwEight (less than 1.3 kg) with padded neck-strap to free your hands Rotary dial knob clearly indicates which function is selected, all in one spot with no complex multi-level menus. Offers additional high current loop mode for faster measurements than loop tests with non-trip mode for RCDs Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation Measures PEFC or PSC and loop impedance in parallel and displays them together on the dual display Offers ring testing so you can select the required input sockets with soft keys and not have to exchange test leads Uses continuity test currents to measure motor windings Detects raised earth voltages > 50 V with Earth Volt Touchpad, indicating potential dangerous situations Features large display with backlight, clear symbols, and exceptionally wide viewing angle for easy and safe readings Offers extended three-layer memoryApplicationsCommercial applications Domestic applications Industrial applicationsCertificationsCE certified CSA certified EC/EN61557-1 IEC/EN61557-7 IEC60364 IP40 ratedBuy Fluke products and claim another Fluke product free. Between 1st September 2021 and 15th December 2021 customers who purchase a Fluke product (inc. Fluke Networks) have the opportunity to claim a free product through the Fluke website with the original proof of purchase, invoice, or receipt. The product can be claimed via www.fluke.co.uk/freefluke. There are six levels of free tools to claim. They are separated based on the value of the qualifying purchase, starting at as little as only £100. For each level there is a fixed range of products to claim, based on the value of the original purchase.
