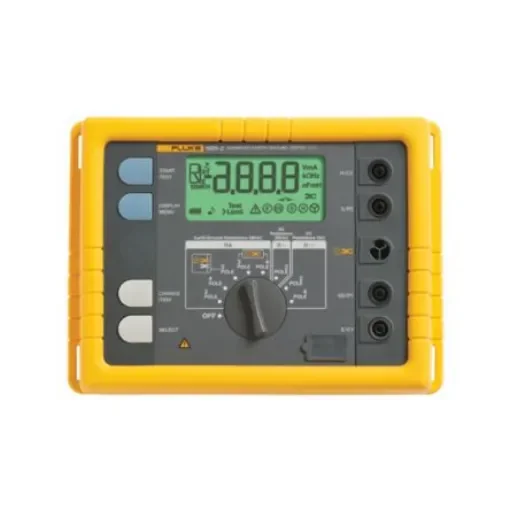

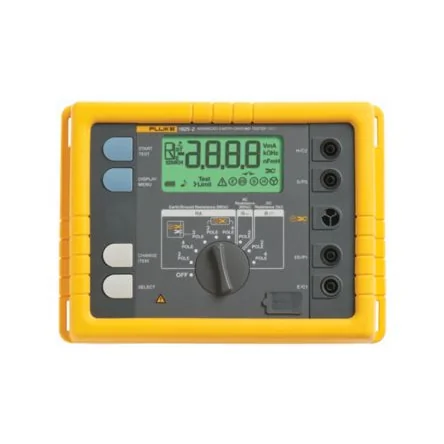

Fluke 1625-2 Earth Tester, 300kO CAT II 300 V - FLUKE-1625-2

Absolute Maximum Resistance Measurement = 300kO
Best Accuracy = ±7% + 2 Digits
Display Type = LCD
Safety Category = CAT II 300 V
Battery Life = 6000 Measurements
Battery Type = AA
Power Source = Battery
Weight = 1.1kg
Height = 133mm
Includes = Battery
Length = 250mm
Maximum Operating Temperature = +35°C
Width = 187mm

6 x AA LR6 batteries, 2 x measuring leads 1.5 m, 2 x alligator clips, users manual. Fluke 1625-2 GEO Earth Ground Tester. The Fluke 1625-2 offers data storage and download capabilities via USB port. It's a distinctive earth ground tester that can perform all four types of earth ground measurement.The Earth Ground Tester is able to measure earth ground loop resistances using only clamps. This method does not require the use of earth ground stakes nor the disconnection of ground rods. 3- and 4-pole Fall-of-Potential, earth resistance loop testing 4-pole Soil Resistivity testing Selective earth ground rod testing using 1 clamp Stakeless earth ground rod testing using 2 clamps IP56 rated for outdoor use Rugged carrying case USB data storage and transfer Automatic Frequency Control (AFC), identifies existing interference and chooses a measurement frequency to minimize its effect, providing more accurate earth ground value R* measurement, calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see Adjustable limits for quicker testing
