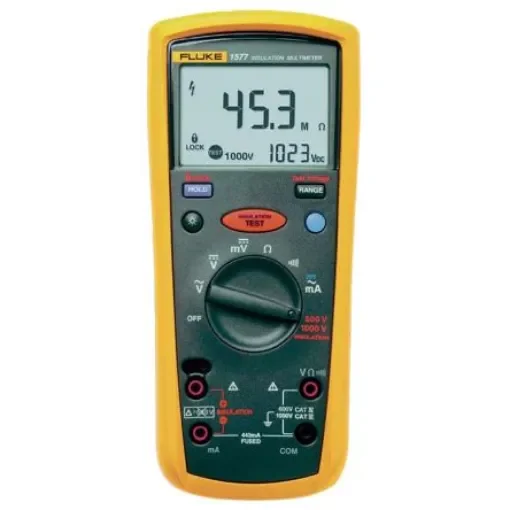

Fluke 1577 Insulation Tester, 500V Min, 1000V Max, 2GO Max, CAT III 1000V - FLUKE-1577

Model Number p = 1577
Tester Type = Insulation Tester
Maximum Test Voltage = 1000V
Maximum Insulation Resistance Measurement = 2GO
Display Type = LCD
Test Current = 1mA
Battery Life = 1000 h
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +55°C
Safety Category Level = CAT III, CAT IVV
Width = 100mm

Batteries, remote probe, test leads and probes, alligator clips, instruction manual, rugged utility hard case and (1587 only) K-type thermocouple. 3. Fluke 1577 ; 1587 Insulation Multimeters. The Fluke Insulation Multimeters combine a digital insulation tester with a full-featured, true RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Fluke 1577 ; 1587. Large display with backlight Insulation test: 1587: 0.01 MO to 2 GO. 1577: 0.1 MO to 600 MO Insulation test voltages (V) 1587: 50, 100, 250, 500, 1000; 1577: 500, 1000) for many applications Live circuit detection prevents insulation test if voltage >30V is detected for added user protection Auto-discharge of capacitive voltage for added user protection AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (O), Continuity Auto power off CAT III 1000V, CAT IV 600V measurement category H. 50 x W. 203 x D.100mm; Wt. 550g. Fluke 1587 additional features:. Filter for motor drive measurements Capacitance, diode test, temperature, Min/Max, frequency (Hz) Insulation test smoothing reading K-type thermocouple
