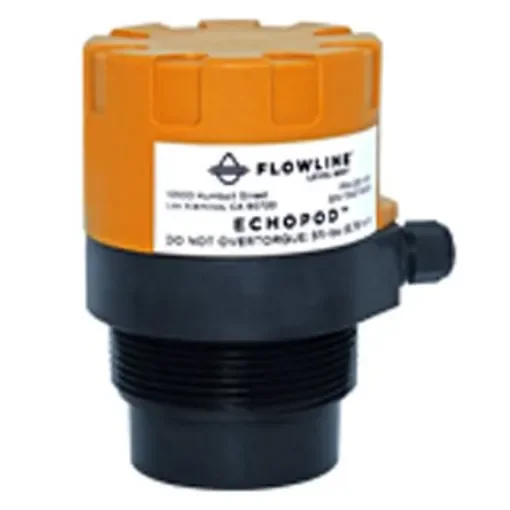

Flowline US03 Series Reflective Ultrasonic Liquid Level Transmitter Level Transmitter, 2 Wire, 4 to 20 mA Output, - US03-0001-01
Reliable ultrasonic liquid level transmitter for accurate non-contact measurement in various applications.
Manufacturer part number: US03-0001-01
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Reflective Ultrasonic Liquid Level Transmitter
Mounting Type = Horizontal, Vertical
Switch Output = 2 Wire, 4 to 20 mA
Body Material = Polypropylene
Cable Length = 1.2m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum DC Voltage = 28V
Maximum Current = 20 mA
Maximum Pressure = 2bar
Series = US03
Interface = USB
Flowline EchoTouch US01 ; US03 Reflective Ultrasonic Liquid Level Transmitter. Flowline EchoTouch US01 ; US03 intrinsically safe reflective ultrasonic level transmitter provides continuous level measurement up to 3 m with a 4 mA to 20 mA analogue signal output configurable via Flowline WebCal software. The non-contact liquid level sensor features proprietary Reflective Technology that delivers reliable level measurement in condensing environments. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps. Features and Benefits. Reflective Technology measures reliably with condensation. Narrow 2 (5 cm) beam width for applications with limited space. Configuration is easy with WebCal software and USB adapter. Short 1.5 (3.8 cm) dead band maximises tank filling capacity. PVDF transducer and PP enclosure for corrosive environments. Fail-safe diagnostics with selectable fail-safe signal outputs. Type 6P (IP68) compact enclosure for small tank applications. Automatic temperature compensation from -40º to 80º C.
