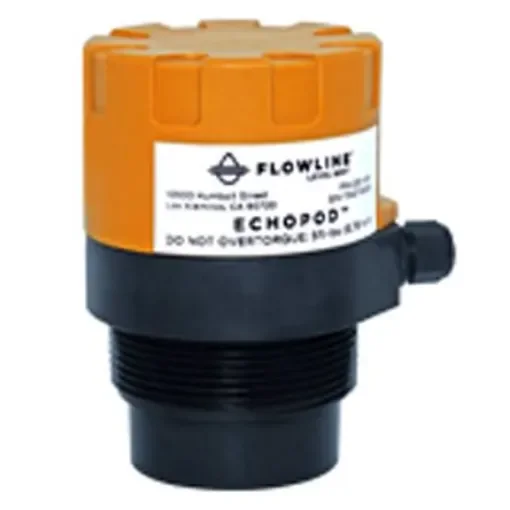

Flowline US01 Series Reflective Ultrasonic Liquid Level Transmitter Level Transmitter, 2 Wire, 4 to 20 mA Output, - US01-0001-01

Flowline EchoTouch US01 ; US03 Reflective Ultrasonic Liquid Level Transmitter. Flowline EchoTouch US01 ; US03 intrinsically safe reflective ultrasonic level transmitter provides continuous level measurement up to 3 m with a 4 mA to 20 mA analogue signal output configurable via Flowline WebCal software. The non-contact liquid level sensor features proprietary Reflective Technology that delivers reliable level measurement in condensing environments. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps. Features and Benefits. Reflective Technology measures reliably with condensation. Narrow 2 (5 cm) beam width for applications with limited space. Configuration is easy with WebCal software and USB adapter. Short 1.5 (3.8 cm) dead band maximises tank filling capacity. PVDF transducer and PP enclosure for corrosive environments. Fail-safe diagnostics with selectable fail-safe signal outputs. Type 6P (IP68) compact enclosure for small tank applications. Automatic temperature compensation from -40º to 80º C.
