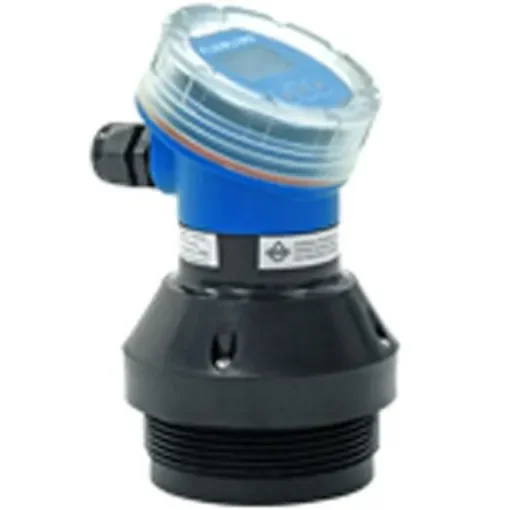

Flowline UG06 Series Reflective Ultrasonic Liquid Level Transmitter Level Transmitter, 2 Wire, 4 to 20 mA Output, - UG06-0001-01
Reliable ultrasonic liquid level transmitter for accurate non-contact measurement in various environments.
Manufacturer part number: UG06-0001-01
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Reflective Ultrasonic Liquid Level Transmitter
Mounting Type = Horizontal, Vertical
Switch Output = 2 Wire, 4 to 20 mA
Body Material = Polycarbonate (Cap), Polypropylene
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum DC Voltage = 28V
Maximum Current = 20 mA
Maximum Pressure = 2bar
Series = UG06
Interface = USB
Flowline EchoPod UG06 Reflective Ultrasonic Liquid Level Transmitter. Flowline EchoPod UG06 general purpose reflective ultrasonic multi function level transmitter provide continuous level measurement up to 12 m. A 4 mA to 20 mA analogue signal output is configurable via an integral push button display module or Flowline WebCal software. The non-contact liquid level sensor features reflective technology that delivers reliable level measurement in condensing environments. Features and Benefits. Reflective Technology measures reliably with condensation. Corrosion resistant PVDF transducer with IP68 PP enclosure. Fail-safe diagnostics with selectable signal fail-safe outputs. LCD display indicates level in inches, meters or percent of span. Narrow 3 (7.6 cm) beam width for applications with limited space. Windowed enclosure cap provides liquid tight level indication. Configuration via push button display or WebCal software. Automatic temperature compensation from -40º to 80º C.
