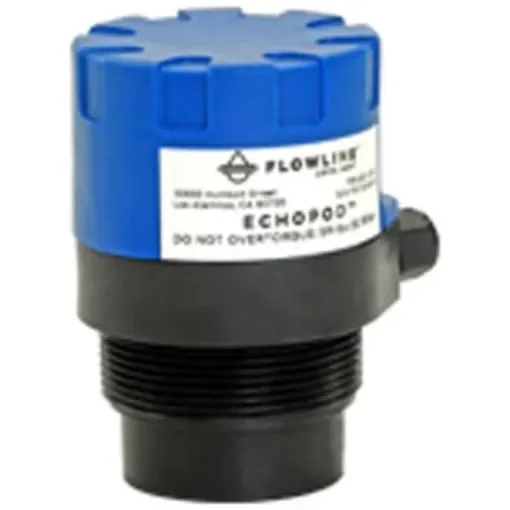

Flowline UG03 Series Reflective Ultrasonic Multi-Function Liquid Level Transmitter Level Transmitter, 2 Wire, 4 to 20 - UG03-0001-41
Reliable ultrasonic level transmitter for accurate liquid measurement in various environments.
Manufacturer part number: UG03-0001-41
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Mounting Type = Horizontal, Vertical
Switch Output = 2 Wire, 4 to 20 mA
Body Material = Polypropylene
Cable Length = 1.2m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum DC Voltage = 28V
Maximum Current = 20 mA
Maximum Pressure = 2bar
Interface = USB
Flowline EchoPod UG01 ; UG03 Reflective Ultrasonic Multi-Function Liquid Level Transmitter. Flowline EchoPod UG01 ; UG03 general purpose reflective ultrasonic multi function level transmitter provide continuous level measurement up to 3 m. 4 mA to 20 mA analogue signal output and four relay outputs are configurable via Flowline WebCal software. The non-contact liquid level sensor features reflective technology that delivers reliable level measurement in condensing environments. Each relay can be configured for alarm, automatic fill or empty functions. Features and Benefits. Fail-safe diagnostics with selectable relay and signal outputs. Narrow 2 (5 cm) beam width for applications with limited space. Corrosion resistant PVDF transducer and compact PP enclosure. Short 1.5 (3.8 cm) dead band maximises tank filling capacity. Automatic temperature compensation from -40º to 80º C. Four programmable relays with embedded level control logic
