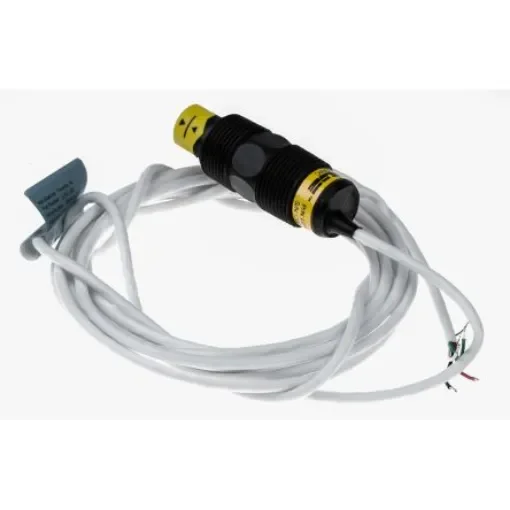

Flowline Switch-Tek Series Ultrasonic Level Switch Ultrasonic Level Sensor, Vertical, PP Body - LU10-1305
Reliable ultrasonic level switch for hazardous environments with versatile mounting options.
Manufacturer part number: LU10-1305
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Ultrasonic Level Switch
Mounting Type = Vertical
Body Material = PP
Cable Length = 3m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum DC Voltage = 36V
Maximum Pressure = 10bar
Gasket Material = FKM
Series = Switch-Tek
Current Rating = 25 mA
Suitable for use with Smart Trak ; Switch Pak installation fittings. Flowline Switch-Tek LU10 Level Switch. Premium range of CSA approved intrinsically safe ultrasonic level point switches from Flowline offer a reliable sensing solution within chemical, solvent, hydrocarbon ; petroleum based liquids. Thanks to the universally mounting style of the Switch-Tek series they can be used in high level or low level alarm configurations. Features and Benefits. PFA Teflon or Polypropylene sensor suitable for use within hazardous environments Can be used as a redundant alarm within classified applications Highly suited for use with corrosive liquids Can be mounted both through the side or top wall of the tank NO/NC 60VA wiring polarity relay
