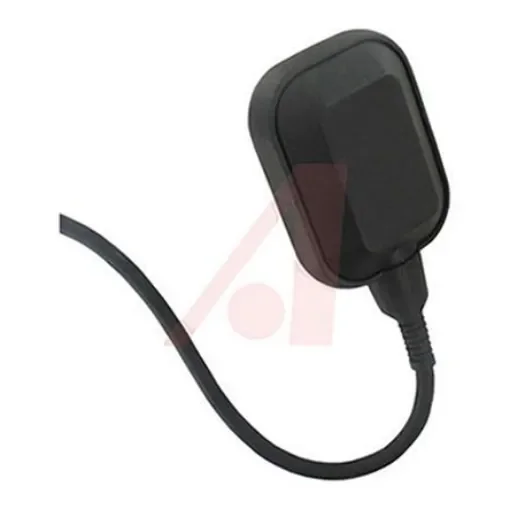

Flowline Switch-Tek Series Sump Float Level Switch Float Switch, Vertical, Polypropylene Body - LV41-7501
Reliable sump float switch for automatic pump control in tanks and reservoirs.
Manufacturer part number: LV41-7501
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Sump Float Level Switch
Mounting Type = Vertical
Body Material = Polypropylene
Cable Length = 15.2m
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Maximum AC Voltage = 250V
Maximum Current = 10 A
Maximum Pressure = 14.5psi
Series = Switch-Tek
Standards Met = CE
Flowline Sump Float SwitchThe Flowline Sump float switch is a mercury-free, mechanically actuated device, intended to activate electrical components, usually pumps, to start and stop automatically. This sump float switch is perfect for simple level control of liquids for filling or draining reservoirs and tanks. Its electrical rating is 10A at 250VAC.Features and BenefitsFloat switch intended for automatic start/stop of electrical components Submersible polypropylene body and PVC cable for corrosive liquids Dry contact closure selectable NO or NC state via wiring selection Compatible with counter weight and cable hanger installations High-quality, reliable level switch Cost-effective and easy to install Operating temperature ranges between 0°C and 50°C Pressure limits: 14.5psi (1bar)ApplicationsPump automation TankCertificationsIP68 rated CE certified ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
