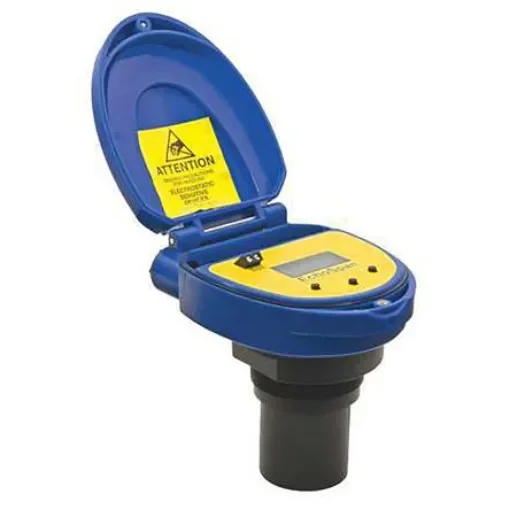

Flowline EchoSonic Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, Vertical, PC Body - LU83-5101
Reliable ultrasonic level transmitter for accurate continuous level measurement in various applications.
Manufacturer part number: LU83-5101
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Ultrasonic Level Transmitter
Mounting Type = Vertical
Body Material = PC
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +71°C
Maximum DC Voltage = 28V
Maximum Current = 20 mA
Maximum Pressure = 2bar
Gasket Material = FKM
Series = EchoSonic
The EchoSonic series is compatible Flowline's free WebCal software to make calibration effortless. Flowline EchoSonic LU Series Level Transmitter. Robust ; reliable level transmitter offered within a 6P enclosure with cable interface. Flowline's echoSonic range of level controllers provide general purpose continuous level measurement over a variety of levels, with a 4-20mA signal output. Various lengths offered, ranging from 3m -10m Transducer comprised of PVDF and a polycarbonate enclosure suitable for use with corrosive liquids Plug ; Play setup thanks to DSP auto-adaptive filters which can provide optimal signal output Optional USB communication adapter available (RS Stock No ; 889-1570 889-1570 )
