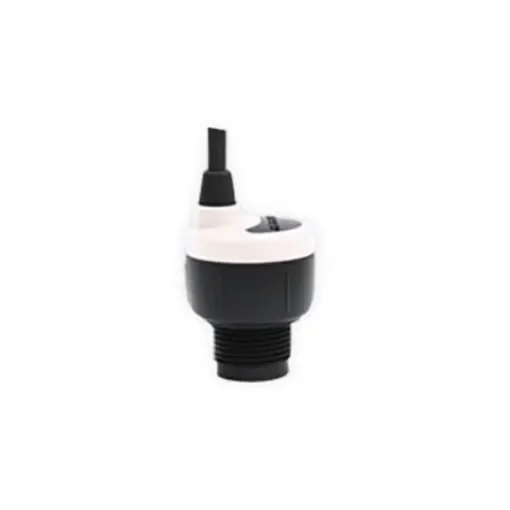

Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, Vertical, Polycarbonate Body - DL10-11

Flowline Ultrasonic Level SwitchThe Flowline Ultrasonic level transmitter provides continuous level measurement up to 49.2in (1.25m) and output current rating ranging from 4mA to 20mA and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids. It has a supply voltage of 24VDC. Note: Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and CommanderFeatures and BenefitsNarrow 2in beam width and short 2in dead band optimized for small tanks PVDF transducer and 6P polycarbonate enclosure for corrosive liquids Automatic temperature compensation for accurate measurement USB adapter with fob Cable length of 1.2m Maximum current of 20mA Process mount: 1in NPT (1in G)ApplicationsTanks Skids IBC Sumps and process tank level applicationsCertificationscFMus certificated CE certificated ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
