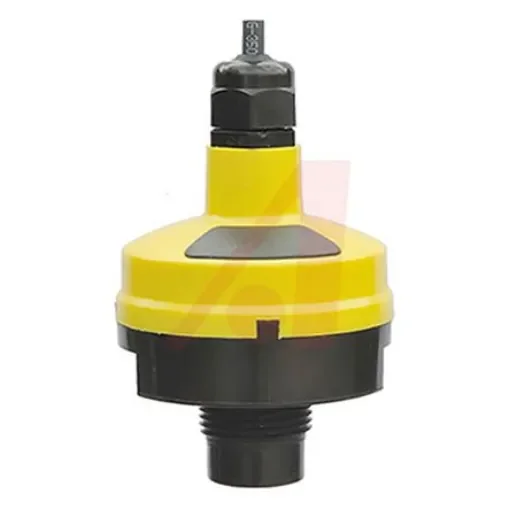

Flowline EchoPod Series Ultrasonic Level Transmitter Ultrasonic Level Sensor, 2 Wire Relay Output, Vertical, - DL24-00
Accurate ultrasonic level transmitter for continuous measurement in tanks and process applications.
Manufacturer part number: DL24-00
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Gasket Material = Viton
Series = EchoPod
Standards Met = CE, RoHS Compliant
Flowline Ultrasonic Level SensorThe Flowline Ultrasonic level transmitter provides continuous level measurement up to 9.8ft (3.0m) and output current rating ranging from 4mA to 20mA and is configured via our free webcal software. This level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower the cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids. Note: Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and CommanderFeatures and BenefitsAccurate measurement made possible because of automatic temperature compensation Optimised for small tank applications with a narrow 2in beam width and 4in short dead band PVDF transducer and 6P polycarbonate enclosure construction is suitable for corrosive applications Four programmable relays for switch, pump or valve control and fail-safety 1 pump or valve with 3 alarms 2 pumps (lead-lag) with 2 alarms 2 pumps (duplexing) with 2 alarms 4 independent switch point alarms Process mount is NPT Cable length of 1.2m Maximum current of 20mA USB adapterApplicationsTanks Skids IBC Sumps and process tank level applicationsCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
