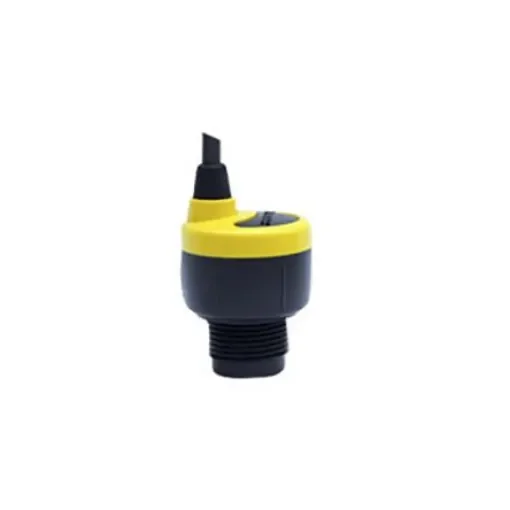

Flowline EchoPod Series Multi Function Ultrasonic Transmitter Ultrasonic Level Sensor, Relay Output, Vertical, - DL14-11
The Flowline Ultrasonic Level Sensor provides accurate non-contact level measurement for corrosive and sticky liquids.
Manufacturer part number: DL14-11
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Operating Temperature = +60°C
Maximum DC Voltage = 24V
Maximum Current = 20 mA
Maximum Pressure = 30psi
Gasket Material = Viton
Series = EchoPod
Standards Met = CE, cFMus, RoHS Compliant
Flowline Ultrasonic Level SwitchThe Flowline Ultrasonic level transmitter provides continuous level measurement up to 49.2in (1.25m) and output current rating ranging from 4mA to 20mA and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids. It has a supply voltage of 24VDC. Note: Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and CommanderFeatures and BenefitsNarrow 2in beam width and short 2in dead band optimized for small tanks Four (4) programmable relays rated at 1A/60VA for switch, pump or valve control and fail-safety 1 pump or valve with 3 alarms 2 pumps (lead-lag) with 2 alarms 2 pumps (duplexing) with 2 alarms 4 independent switch point alarms PVDF transducer and 6P polycarbonate enclosure for corrosive liquids Automatic temperature compensation for accurate measurement USB adapter with fob Cable length of 1.2m Maximum current of 20mA Process mount: 1in NPT (1in G)ApplicationsTanks Skids IBC Sumps and process tank level applicationsCertificationscFMus certificated CE certificated ANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
