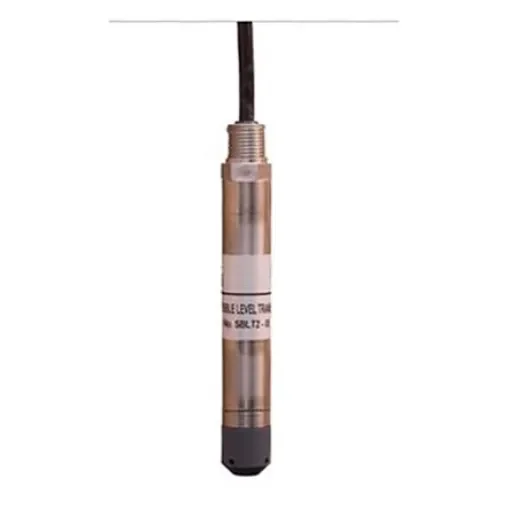

Flowline DeltaSpan Series Pressure Level Transmitter Level Sensor, 2 Wire Output, Horizontal, Vertical, Buna-N, - LD31-S131
Reliable submersible pressure level transmitter for continuous liquid level measurement.
Manufacturer part number: LD31-S131
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Device Type = Pressure Level Transmitter
Mounting Type = Horizontal, Vertical
Switch Output = 2 Wire
Body Material = Buna-N, Stainless Steel 316, Stainless Steel 316L
Cable Length = 18.3m
Minimum Operating Temperature = -18°C
Maximum Operating Temperature = +66°C
Maximum DC Voltage = 30V
Maximum Current = 20 mA
Maximum Pressure = 20psi
Series = DeltaSpan
Standards Met = CE
Flowline DeltaSpan LD31 Submersible Pressure Level Transmitter. General purpose range of Submersible Pressure Level Sensors from Flowline offers a robust ; reliable sensing solution. Provides the user with continuous level measurement up to 14m of liquid with a 4-20mA output signal. 316 Stainless steel body with polyurethane or ETFE cable Fit ; forget design thanks to a strong cable design with a maintainence free breather ; vent filter
