Key Features:

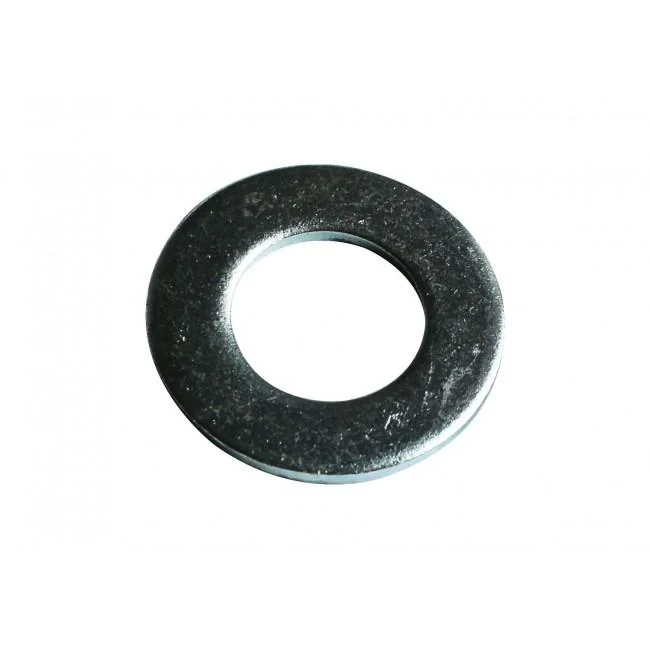

Designed to distribute the load of a screw or bolt over a larger surface area, enhancing the strength and stability of the fastening.
Zinc-plated finish provides corrosion resistance, extending the product's lifespan.
Complies with NFE 25513, NFE 25514, and ISO 7089 standards, ensuring professional quality and compatibility with similar products.
Technical Specifications:
Material: Steel with zinc plating.
Standards: NFE 25513, NFE 25514, ISO 7089.
Dimensions:
| Nominal Diameter (d) | Inside Diameter (d1) | Outside Diameter (d2) | Thickness (s) |
|---|
| 3 mm | 3.4 mm | 8 mm | 0.8 mm |
| 4 mm | 4.5 mm | 10 mm | 0.8 mm |
| 5 mm | 5.5 mm | 12 mm | 1 mm |
| 6 mm | 6.6 mm | 14 mm | 1.2 mm |
| 8 mm | 8.6 mm | 18 mm | 1.5 mm |
| 10 mm | 10.8 mm | 22 mm | 2 mm |
| 12 mm | 13.3 mm | 27 mm | 2.5 mm |
| 14 mm | 15.3 mm | 30 mm | 2.5 mm |
| 16 mm | 17.3 mm | 32 mm | 3 mm |
| 18 mm | 19.3 mm | 36 mm | 3 mm |
| 20 mm | 21.3 mm | 40 mm | 3 mm |
Compatibility Information:
Suitable for use with screws and bolts that match the nominal diameters listed above.
Ideal for applications requiring corrosion resistance, such as marine environments.
Additional Details:
The zinc-plated coating is achieved through galvanization, providing a protective layer against corrosion.
The washers are designed to meet the specified standards, ensuring uniformity and reliability in various applications.
