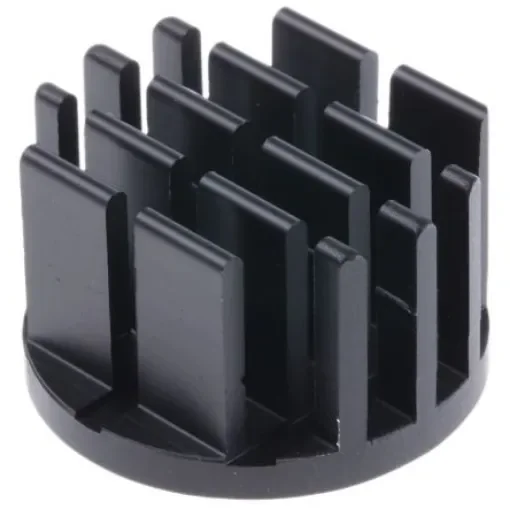

Fischer Elektronik Heatsink, Universal Round Alu, 19.16K/W, 23.5 (Dia.) x 14mm, Adhesive Foil, Conductive Foil - ICK LED R 23,5 x 14 G
Efficiently dissipate heat for high power LEDs with this universal round aluminum heatsink.
Manufacturer part number: ICK LED R 23,5 x 14 G
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
For Use With = Universal Round Alu
Height = 14mm
Dimensions = 23.5 (Dia.) x 14mm
Thermal Resistance = 19.16K/W
Mounting = Adhesive Foil, Conductive Foil
Diameter = 23.5mm
Colour = Black
Package Type = LED
ICK LED R Series. High power (HP) and high brightness (HB) LEDs need efficient heat dissipation to facilitate trouble-free functioning, good light yield and long service life. The shape or location of lamps and their housings is often rotationally asymmetric, so that a round body is the appropriate heatsink shape. Fischer has developed ICK LED R and ICK S R (typical SN 674-4832 ) series aluminium heatsinks with dimensions to match the majority of current round housing designs. Black anodised surface Suitable for free or forced convection Heatsink dimensions fitted to respective LED types Simple mounting by using thermally conductive adhesive foil, glue or screw mounting
