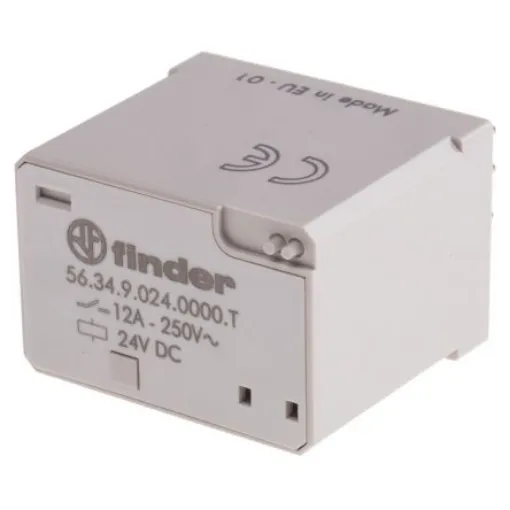

Finder Plug In Power Relay, 24V dc Coil, 12A Switching Current, 4PDT - 56.34.9.024.0000T
Reliable 24V DC power relay with 12A switching current, ideal for railway applications.
Manufacturer part number: 56.34.9.024.0000T
GTIN: 8012823349824
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = 4PDT
Mounting Type = Plug In
Switching Current = 12A
Number of Poles = 4
Latching = No
Terminal Type = Quick Connect
Maximum Switching Voltage AC = 400V ac
Length = 27.7mm
Coil Resistance = 490O
Coil Power = 2W
Series = 56 Series°C
Maximum Switching Power AC = 3 kVA
46 and 56 Series - Relays for Railway Applications. 46 and 56 series plug-in power relays specially designed for railway applications. 8 A, 2 pole 12 A, 2 and 4 pole DC coils with extended range Complies with UNI CEI 11170-3 (protection against fire of materials), EN 61373 (resistance against random vibrations and shock, Category 1, Class B), EN 50155 (resistance to temperature and humidity, TX class) Cadmium free Different contact material options Coil EMC suppression modules Suitable with 97 series sockets and accessories
