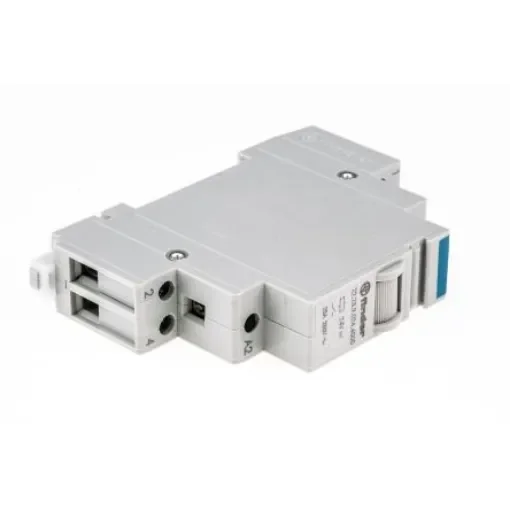

Finder DIN Rail Relay, 24V dc Coil, 20A Switching Current, SPST-NC, SPST-NO - 22.23.9.024.4000
Reliable DIN rail relay with 24V DC coil and 20A switching current for efficient control.
Manufacturer part number: 22.23.9.024.4000
GTIN: 8012823119977
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = SPST-NC, SPST-NO
Mounting Type = DIN Rail
Switching Current = 20A
Number of Poles = 3
Latching = No
Terminal Type = Screw
Maximum Switching Voltage AC = 250V ac
Coil Resistance = 460O
Coil Power = 1.25W
Series = 22 Seriesmm
Maximum Switching Power AC = 5 kVA
Finder Monostable Din RelayThe Finder 22 series DIN rail mount non-latching relay has contact configuration of SPST-NC, SPST-NO. It is actuated with a 24VDC coil and 20A switching current. This relay is equipped with 20A, 250VAC Cadmium-free contacts rated at 5000VAC1. The relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.Features and Benefits17.4 mm wide 35 mm rail mount Coil power is 1.25W Coil resistance is 460ohm Identification label Insulation between coil and contacts(1.2/50µ) is 4KV Manual test button Mechanical life 500 x103 cycles Operating temperature ranging between -40°C and 40°C Screw terminal typeApplicationsAir conditioning Heating LightingCertificationsCE certified GOST IP20 rated EN 60715
