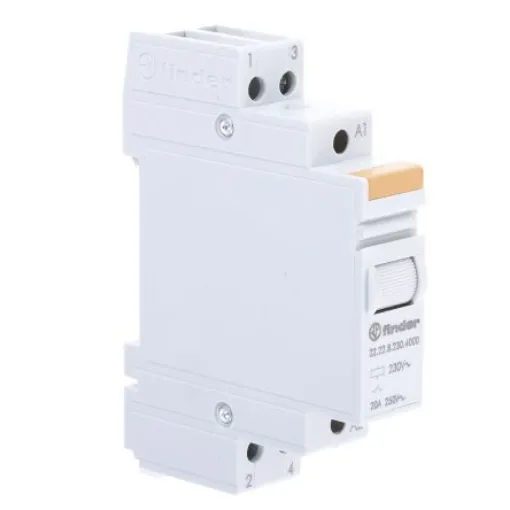

Finder DIN Rail Relay, 230V ac Coil, 20A Switching Current, DPST-NO - 22.22.8.230.4000

Finder Non-latching RelayThe Finder 22 series DIN rail mount non-latching relay has contact configuration of DPNO. It is actuated with 230VAC coil voltage and 20A switching current. This modular monostable relay is equipped with 20A, 250VAC cadmium-free contacts rated at 5000V AC1. This relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.Features and BenefitsCoil power is 3W Coil resistance is 4.25Kohm 17.5mm wide 35mm DIN rail mount housing Identification label Insulation between coil and contacts (1.2/50µ) is 4KV Manual test button Mechanical life is 500 x103 cycles Operating temperature ranges between -40°C and 40°C Screw terminal typeApplicationsAir conditioning Heating LightingCertificationsCE certified GOST IP20
