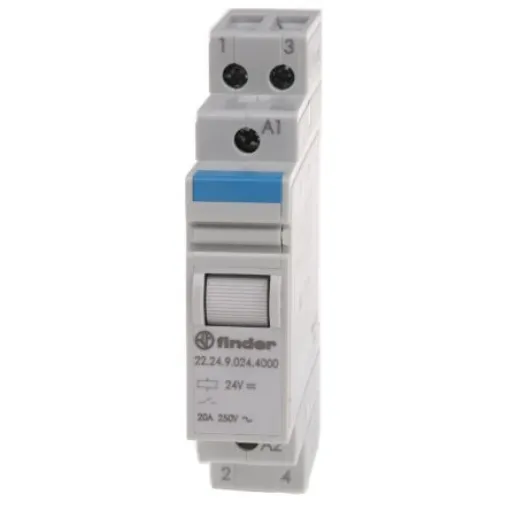

Finder DIN Rail Power Relay, 24V dc Coil, 20A Switching Current, 2NC - 22.24.9.024.4000
Reliable 24V DC DIN Rail Power Relay with 20A switching capacity for commercial applications.
Manufacturer part number: 22.24.9.024.4000
GTIN: 8012823120225
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = 2NC
Mounting Type = DIN Rail
Switching Current = 20A
Number of Poles = 4
Latching = No
Terminal Type = Screw
Coil Resistance = 460O
Coil Power = 1.25W
Series = 22 Series°C
Maximum Switching Power AC = 5 kVA
Modular Relays - 22 Series. The 22 Series are available as DPST-NO or SPST-NO + SPST-NC relays. Equipped with 20A, 250VAC contacts rated at 5000VA AC1, they are ideal for use in commercial applications including heating, air conditioning and lighting. The relays have a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent. 17.5mm wide (EN 50022) 35mm DIN rail mount housing Manual test button AC and DC coils Insulation between coil and contacts(1.2/50µ); 4KV Mechanical life; 500 x 10 ;sup>3 ;/sup> Temperature range: -40 to +40°C Protection Category: IP20
