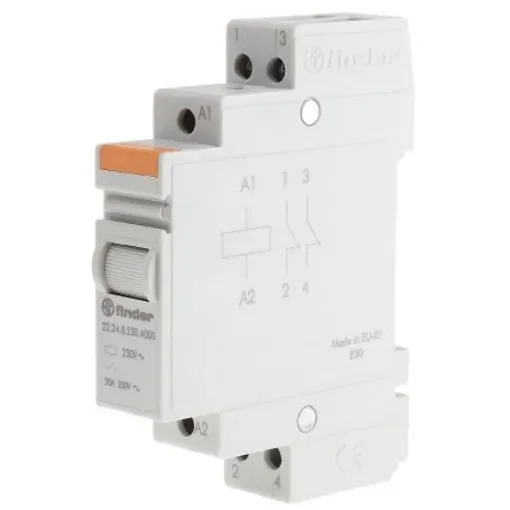

Finder DIN Rail Power Relay, 230V ac Coil, 20A Switching Current, DPST - 22.24.8.230.4000
Reliable 20A DIN Rail Power Relay for 230V AC applications, perfect for heating and lighting control.
Manufacturer part number: 22.24.8.230.4000
GTIN: 8012823121550
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 230V ac
Contact Configuration = DPST
Mounting Type = DIN Rail
Switching Current = 20A
Number of Poles = 4
Latching = No
Terminal Type = Screw
Coil Resistance = 4250O
Coil Power = 1.25W
Series = 22 Series°C
Maximum Switching Power AC = 5 kVA
Modular Relays - 22 Series. The 22 Series are available as DPST-NO or SPST-NO + SPST-NC relays. Equipped with 20A, 250VAC contacts rated at 5000VA AC1, they are ideal for use in commercial applications including heating, air conditioning and lighting. The relays have a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent. 17.5mm wide (EN 50022) 35mm DIN rail mount housing Manual test button AC and DC coils Insulation between coil and contacts(1.2/50µ); 4KV Mechanical life; 500 x 10 ;sup>3 ;/sup> Temperature range: -40 to +40°C Protection Category: IP20
