Finder DIN Rail Power Relay, 230V ac Coil, 16A Switching Current, SPST - 13.61.8.230.0000
Reliable DIN rail power relay with 16A switching capacity and 230V AC coil for efficient control.
Manufacturer part number: 13.61.8.230.0000
GTIN: 8012823377117
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 230V ac
Contact Configuration = SPST
Mounting Type = DIN Rail
Switching Current = 16A
Number of Poles = 1
Latching = No
Terminal Type = Screw
Maximum Switching Voltage AC = 400V ac
Length = 17.5mm
Coil Power = 1W
Series = 13 Series°C
Maximum Switching Power AC = 4 kVA

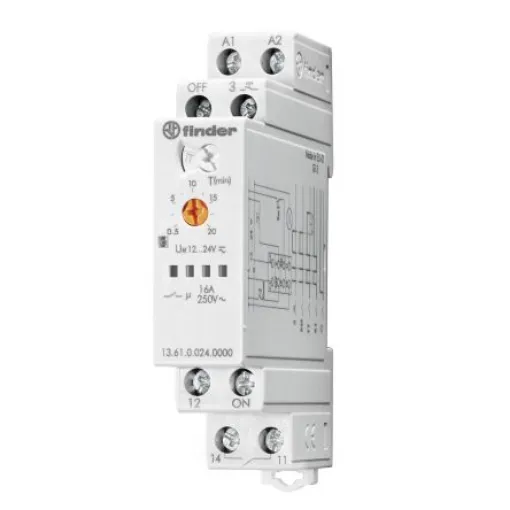

13.61 Series - Multifunction Step/Monostable Relays with Reset Command. Finder 13.61 Series multifunction step/monostable relay with reset command, rail mounted with 1 pole. Multifunction (Step, Timing step, Monostable, Light ON) Reset feature, for centralised off command Control input can be continuously applied Longer mechanical and electrical life, and quieter than electromechanical step relays Zero-crossing load switching 35 mm rail mount Cadmium free contact material Screw terminal
