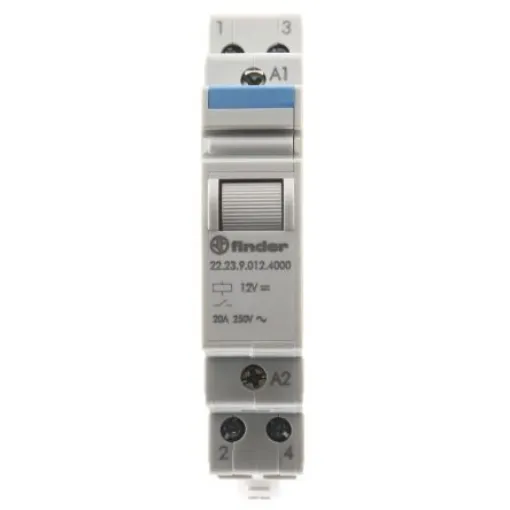

Finder DIN Rail Power Relay, 12V dc Coil, 20A Switching Current, SPST-NC, SPST-NO - 22.23.9.012.4000
Reliable DIN rail power relay with 12V DC coil and 20A switching capacity.
Manufacturer part number: 22.23.9.012.4000
GTIN: 8012823124797
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Mounting Type = DIN Rail
Terminal Type = Screw
Minimum Operating Temperature = -40°C
Maximum Switching Power AC = 5 kVA
Finder Monostable Din RelayThe Finder 22 series DIN rail mount non-latching relay has contact configuration of SPST-NC, SPST-NO. It is actuated with a 12VDC coil and 20A switching current. This relay is equipped with 20A, 250VAC Cadmium-free contacts rated at 5000VAC1. The relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.Features and Benefits17.4 mm wide 35 mm rail mount Coil power is 1.25W Coil resistance is 115ohm Identification label Insulation between coil and contacts(1.2/50µ) is 4KV Manual test button Mechanical life 500 x103 cycles Operating temperature ranging between -40°C and 40°C Screw terminal typeApplicationsAir conditioning Heating LightingCertificationsCE certified GOST IP20 rated EN 60715
