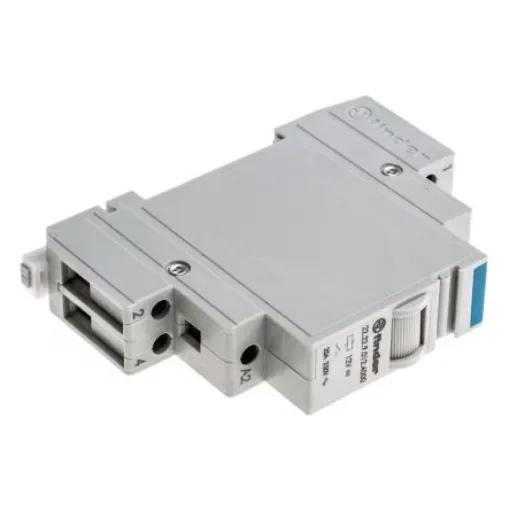

Finder DIN Rail Power Relay, 12V dc Coil, 20A Switching Current, DPST - 22.22.9.012.4000
Reliable Finder DIN rail power relay with 12V DC coil and 20A switching capacity.
Manufacturer part number: 22.22.9.012.4000
GTIN: 8012823123684
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Mounting Type = DIN Rail
Switching Current = 20A
Number of Poles = 2
Maximum Switching Voltage AC = 250V ac
Coil Resistance = 115O
Coil Power = 1.25W
Series = 22 Seriesmm
Finder Non-latching RelayThe Finder 22 series DIN rail mount non-latching relay has contact configuration of DPNO. It is actuated with 12VDC coil voltage and 20A switching current. This modular monostable relay is equipped with 20A, 250VAC cadmium-free contacts rated at 5000V AC1. This relay has a nominal lamp load rating of 1000W for incandescent and 360W for compensated fluorescent.Features and BenefitsCoil power is 1.25W Coil resistance is 115ohm 17.5mm wide 35mm DIN rail mount housing Identification label Insulation between coil and contacts (1.2/50µ) is 4KV Manual test button Mechanical life is 500 x103 cycles Operating temperature ranges between -40°C and 40°C Screw terminal typeApplicationsAir conditioning Heating LightingCertificationsCE certified GOST IP20 rated
