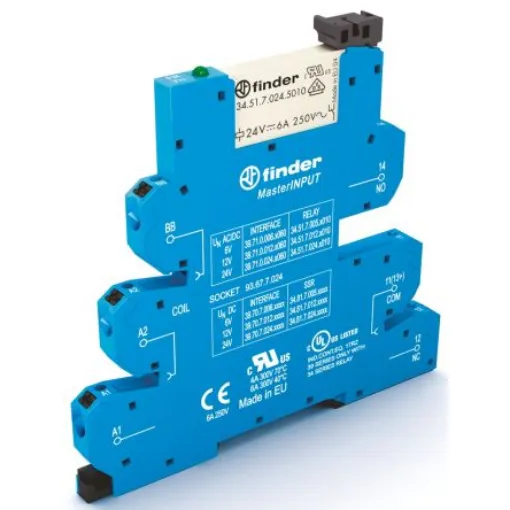

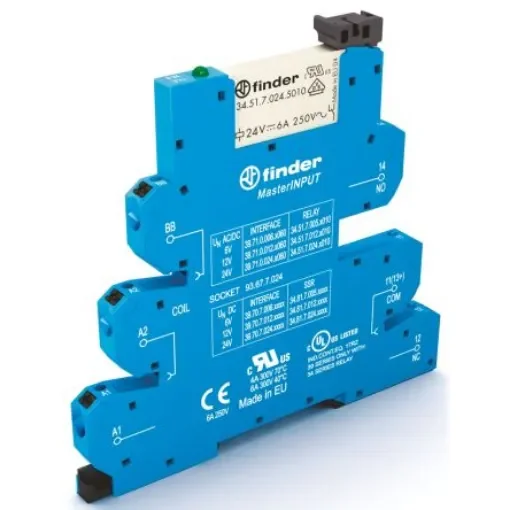

Finder 39 Series Interface Relay, DIN Rail Mount, 6V ac/dc Coil, SPDT - 39.71.0.006.5060
Compact SPDT interface relay with high switching capability and easy DIN rail mounting.
Manufacturer part number: 39.71.0.006.5060
GTIN: 8012823390253
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Contact Configuration = SPDT
Mounting Type = DIN Rail
Series = 39 Series
Minimum Input Voltage = 4.8V ac/dc
Terminal Type = Push In
Depth = 90.7mm
Height = 94.3mm
Length = 6.2mm
Contact Material = Silver Alloy
Input Current = 35mA
Dimensions = 6.2 x 90.7 x 94.3mm
39 Series - EMR Screw Terminals. A range of electromechanical relay interface modules from the 39 series from Finder, these relays have a high switching capability. Space saving 6.2 mm wide Connections for 16-way jumper link Integral coil indication and protection circuit Secure retention and easy ejection by plastic clip Dual screw head (blade+cross) terminals 35 mm DIN rail mounting
