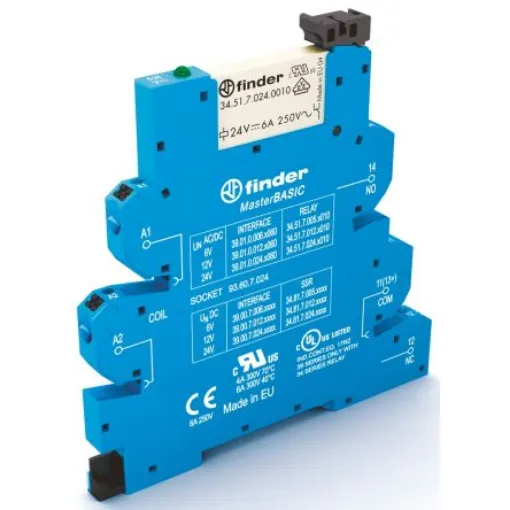

Finder 39 Series Interface Relay, DIN Rail Mount, 110V ac/dc Coil, SPDT - 39.01.0.125.0060
Compact SPDT interface relay with 110V AC/DC coil for reliable performance.
Manufacturer part number: 39.01.0.125.0060
GTIN: 8012823390024
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 110V ac/dc
Contact Configuration = SPDT
Mounting Type = DIN Rail
Series = 39 Series
Minimum Input Voltage = 88V ac/dc
Terminal Type = Push In
Depth = 90.7mm
Height = 87mm
Length = 6.2mm
Contact Material = Silver Alloy
Input Current = 5.6mA
Dimensions = 6.2 x 90.7 x 87mm
39 Series - EMR Screw Terminals. A range of electromechanical relay interface modules from the 39 series from Finder, these relays have a high switching capability. Space saving 6.2 mm wide Connections for 16-way jumper link Integral coil indication and protection circuit Secure retention and easy ejection by plastic clip Dual screw head (blade+cross) terminals 35 mm DIN rail mounting
