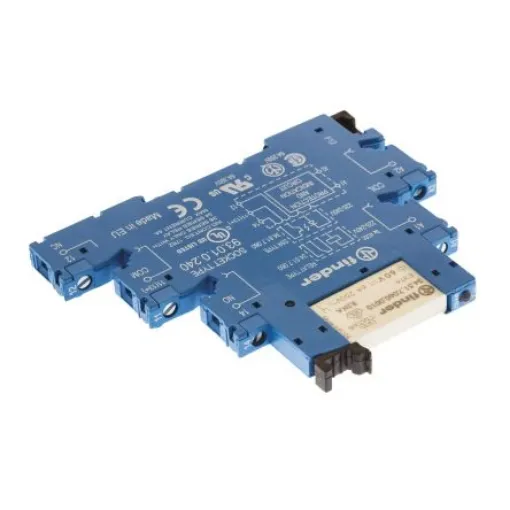

Finder 38 Series Interface Relay, DIN Rail Mount, 230V ac/dc Coil, SPDT, 1-Pole - 38.51.0.240.0060

Coil Voltage = 230V ac/dc
Contact Configuration = SPDT
Mounting Type = DIN Rail
Series = 38 Series
Terminal Type = Screw
Depth = 75.6mm
Height = 87.9mm
Length = 6.2mm
Contact Material = Silver Alloy
Input Current = 4mA
Dimensions = 6.2 x 75.6 x 87.9mm

Finder Interface Relay ModuleThe Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 230VAC/DC coil and an SPDT 1C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.Features and BenefitsThe contact rated voltage is 250VAC and switching current of 6A The input and output circuits and the voltage supply are completely electrically isolated Instant ejection of relay by plastic retaining clip Integral coil indication and protection circuit Operating temperature ranges from -40°C to 55°C AgNi contact material Screw type terminal connection DIN rail type mountingApplicationsPackaging machines Traffic light controls Vending machines Programmable controllers Control panels for electrical distribution Labelling machine Bottling plants Industrial process control Motor control applications Electrical isolation Signal matching between electronic controlsCertificationsIP20 rated CE certified CSA certified EAC certified cRUus certified
