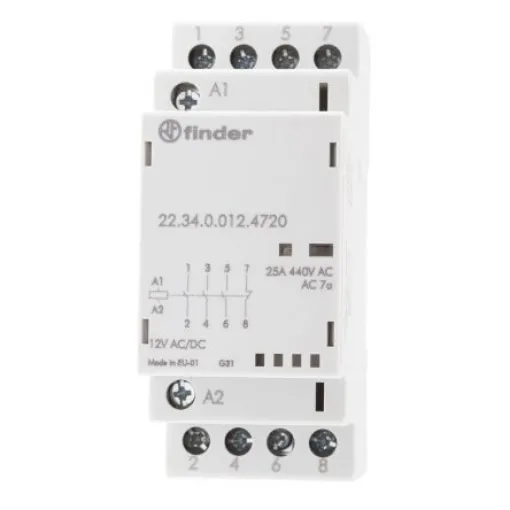

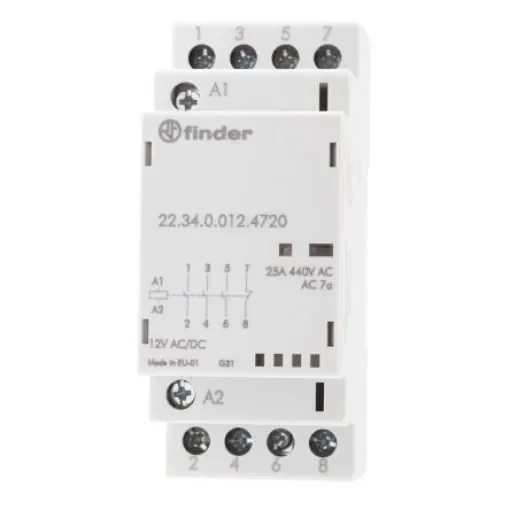

Finder 22 Series Contactor, 12 V dc Coil, 4-Pole, 25 A, 4 kW, 3NO + 1NC, 250 V ac, 440 V ac - 22.34.0.012.4720
Reliable 4-pole contactor with 12V DC coil, ideal for various applications.
Manufacturer part number: 22.34.0.012.4720
GTIN: 8012823363929
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12 V dc
Number of Poles = 4
Contact Voltage Rating = 250 V ac, 440 V ac
Contact Current Rating = 25 A
Power Rating = 4 kW
Normal State Configuration = 3NO + 1NC
Terminal Type = Screw
Length = 35mm
Depth = 60.8mm
Maximum Operating Temperature = +50°C
22 Series - Modular Contactors. A range of 25A modular contactors from the 22 Series from Finder. NO contact gap =3 mm, double break Continuous duty for the coil and contacts AC/DC silent coil (with varistor protection) Protective separation (reinforced insulation) between coil and contacts Mechanical and LED indicators as standard
