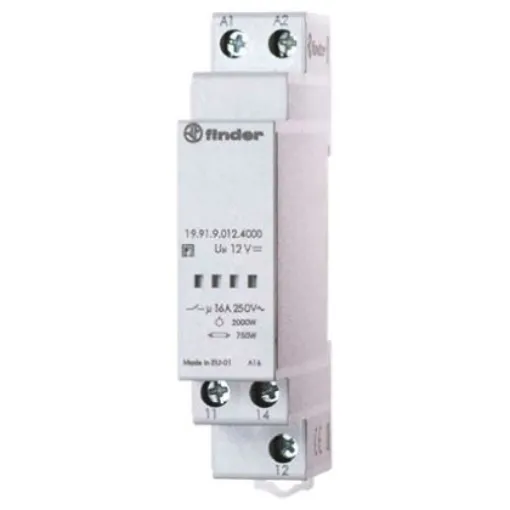

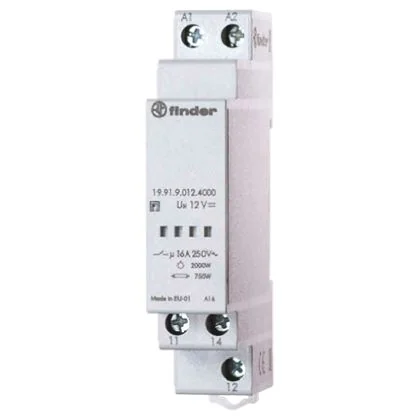

Finder 19 Series Interface Relay, DIN Rail Mount, 12V dc Coil, SPDT - 19.91.9.012.4000

Coil Voltage = 12V dc
Contact Configuration = SPDT
Mounting Type = DIN Rail
Series = 19 Series
Terminal Type = Screw
Depth = 60.8mm
Height = 88.8mm
Length = 17.5mm
Contact Material = Silver Alloy
Dimensions = 88.8 x 17.5 x 60.8mm

For use with 11.91 series light dependent relay in conjunction with 2-pole 11.91 connector. This permits a flexible lighting system controlled by the ambient light, both with and without the influence of the time switch function in the 11.91 timeswitch. Power Relay Module 16A. Ideally suited for use in conjunction with Building Management Systems (BMS), Direct Digital Controllers (DDC or in combination with PLC's These modules are used as an interface between the BMS, DDC, PLC and the connected equipment Suitable for lamps load 2,000W incandescent, 750W compensated fluorescent AgSnO2 contacts for heavy duty, high in-rush current loads LED indication
