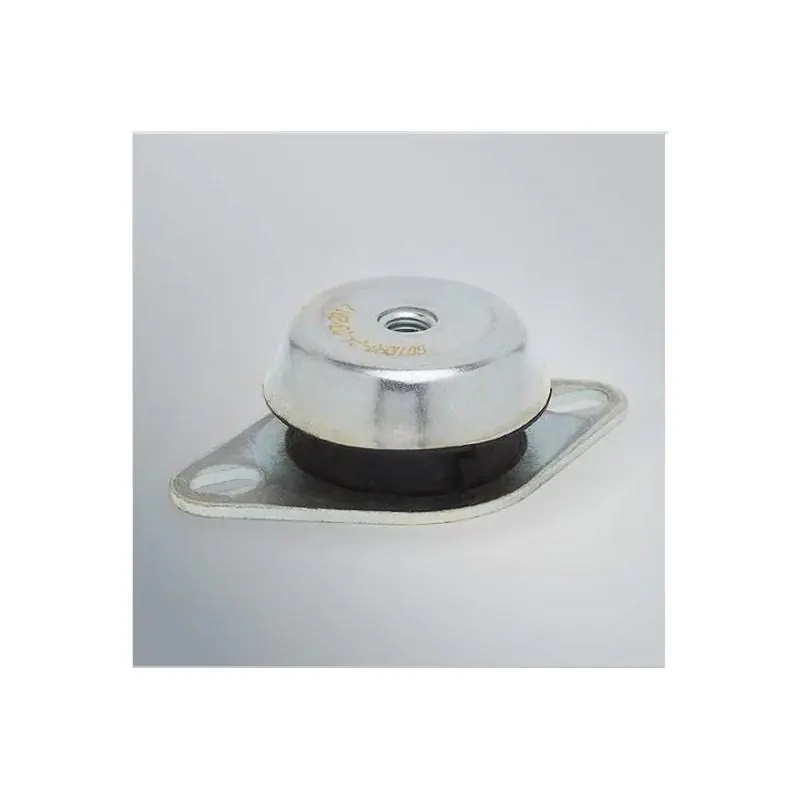

Key Features:
- Low-profile design for easy installation.
- Built-in fail-safe device providing shock and failure protection for mobile, marine, or seismic stationary applications.
- Offers high-level insulation, especially useful with generators, engines, and systems operating at around 25 Hz (1500 rpm).
- Axial stresses are effectively absorbed, and side deflections are limited to ensure stability.
Technical Specifications:
- Thread Size: M8
- Diameter: 63 mm
- Overall Height: 34 mm
- Compression Load: 110 daN
- Compression Deflection: 3.5 mm
- Natural Frequency: Approximately 8 Hz
Materials:
- Rubber: Natural Rubber (NR)
- Metalwork: Zinc Plated Steel
Dimensions:
- Diameter: 63 mm
- Height: 34 mm
Compatibility Information:
- Suitable for applications requiring M8 thread size.
- Ideal for use with generators, engines, tool room machinery, pumps, HVAC systems, and special equipment.
Additional Details:
- Provides large static deflection and high isolation when the rubber works in shear and compression.
- Offers shock and failure protection for mobile, marine, or seismic stationary applications.
