The compact model with great power.
QUADRIVE With 4 - speed metal gear. To transmit a high force with high speed: a powerful bolting with a torque of 60 Nm at the 1st speed thus becomes a simple task. And the precise drilling with 3,800 rpm in the 4th speed is almost in a children's game. Whether in wood or metal, the QUADRIVE series is synonymous with high durability and high shock resistance. The FastFix interface guarantees extraordinary performance and allows you to quickly and without tools change the CENTROTEC chuck, quick clamp chuck, angle head or pipe wrench adapter. An impressive drive, for greater power and precision in any situation.
Specifications
| 18V battery voltage | Speeds 4 |
| Empty speed 1st / 2nd gear | 0 - 400/0 - 850 min⁻¹ |
| No - load speed 3rd / 4th gear | 0 - 1850/0 - 3800 min⁻¹ |
| Profile Dia. in wood / steel | 50/13 mm |
| Torque adjustment 1st / 2nd gear | 1.2 - 11.5 / 0.8 - 7.2 Nm |
| Max torque in mad./acero | 40/60 Nm |
| Chuck range | 1.5 - 13 mm |
| Battery capacity | 5.2 Ah |
| Weight with battery | 1.9 kg |

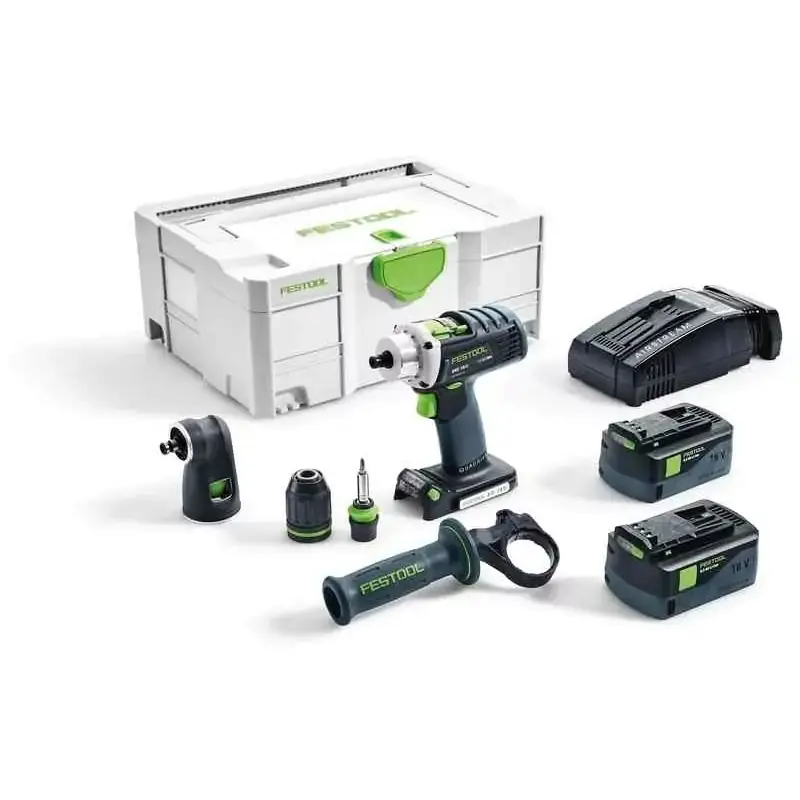

Supply provision
- 2x BP 18 Li 5.2 AS battery
- fast charger SCA 8
- angular charger
- CENTROTEC mandrel
- additional handle
- QuickFix 13 quick clamp chuck
- CENTROTEC BH 60 CE magnetic pencil holder
- tip PZ 2
Packaging
in SYSTAINER SYS 2 DF T - LOC
