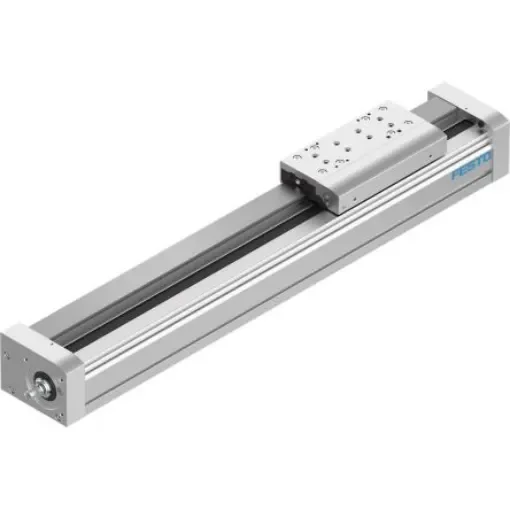

Festo Screw Driven Linear Actuator, 500mm, 750mm/s, 3013575 - EGC-120-500-BS-10P-KF-0H-ML-GK
High-performance screw driven linear actuator with 500mm stroke and 750mm/s speed.
Manufacturer part number: EGC-120-500-BS-10P-KF-0H-ML-GK
GTIN: 4052568268527
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Screw Driven Linear Actuator
Maximum Stroke Length = 500mm
Series = EGC
Maximum Speed No Load = 750mm/s
Maximum Force Lifting = 6890N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 3013575
The Festo spindle axis EGC-120-500-BS-10P-KF-0H-ML-GK With recirculating ball bearing guide. It has flexible motor mountingWorking stroke=500 mm Size=120 Stroke reserve=0 mm Spindle diameter=25 mm Spindle pitch=10 mm/U
