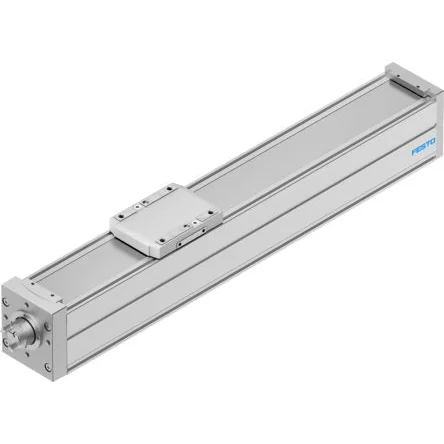

Festo Screw Driven Linear Actuator, 400mm, 1000mm/s, 8061501 - ELGC-BS-KF-80-400-16P
High-speed Festo screw driven linear actuator for precision applications, featuring a 400mm stroke length.
Manufacturer part number: ELGC-BS-KF-80-400-16P
GTIN: 4052568295905
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Screw Driven Linear Actuator
Maximum Stroke Length = 400mm
Series = ELGC-BS
Maximum Speed No Load = 1000mm/s
Maximum Force Lifting = 5543N
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 8061501
Ball screw axes ELGC-BS for precision applicationCompact, light-weight design Cost effective actuators All 3 easily mount together to create 2-axis and 3-axis systems Breathing ports to apply overpressure to keep dirt out or apply vacuum to keep particulates in Toothed belt for dynamic applications Ball screw for precision applications
