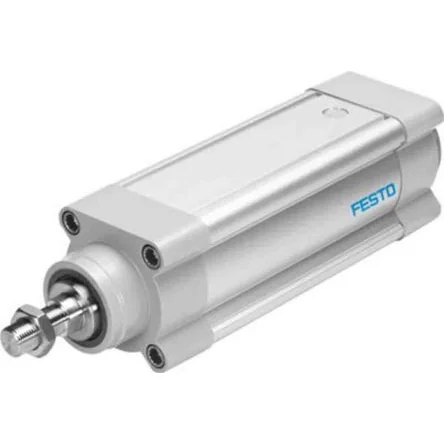

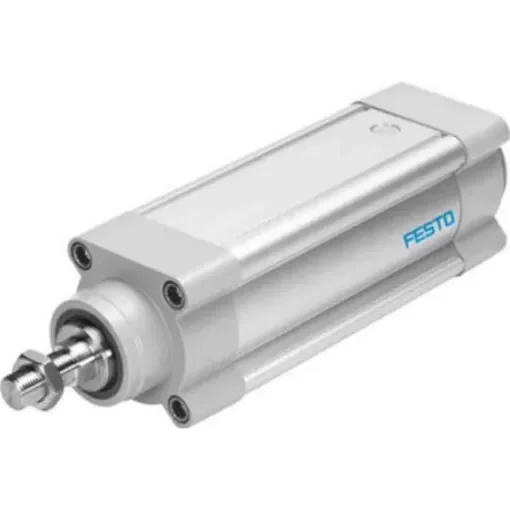

Festo Rod Linear Actuator, 300mm, 6864.6N, 270mm/s, 574094 - ESBF-BS-63-300-5P

Actuator Type = Rod Linear Actuator
Maximum Stroke Length = 300mm
Maximum Load = 6864.6N
Series = ESBF
Maximum Speed No Load = 270mm/s
Duty Cycle = 100%
IP Rating = IP40
Model Number = 574094

Festo Rod Electric Linear Actuator - ESBF Series - ESBF-BS-63-300-5P Need a heavy-duty and reliable way to convert rotary motion to linear force in your factory setting? Choose this linear actuator from Festo. It has a ball screw with three spindle pitches to quickly select the optimum force-to-speed ratio. The high-alloy steel piston rod combines long life with superior strength and corrosion resistance. The galvanised steel screws have lifetime lubrication for maintenance-free operation. This robust unit is rated IP40 to protect against objects larger than 1 mm, and its compatible with a wide range of attachments, so you can use it as part of a modular system.• Working stroke of 300 mm • Rod size of 63 • M16 x 1.5 piston rod thread • Reversing backlash of 30 µm • Spindle diameter of 25 mm • Spindle pitch of 5 mm/U • +/- 0.4-degree maximum angular deflection of the piston rod • Maximum acceleration of 5 m/s² • Maximum speed of 0.27 m/s • Repetition accuracy of ±0.015 mm • 100% duty cycle • Servomotor type • ISO (International Standards Organisation) 15552 standard pneumatic cylinder Range Information • The ESBF series is Festos range of heavy-duty electric cylinders • Powerful units with a dynamic feed force of up to 17 kN • Optional high corrosion protection and food-safe piston rod extension accessories are available • Complete kits available for both parallel and axial motor mountingThe Festo ESBF series electric cylinder is a linear drive with ball screw in design for proximity sensor. It has a electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. A piston rod thread is M16x1.5.Size=63 Stroke=300 mm Reversing backlash=30 µm
