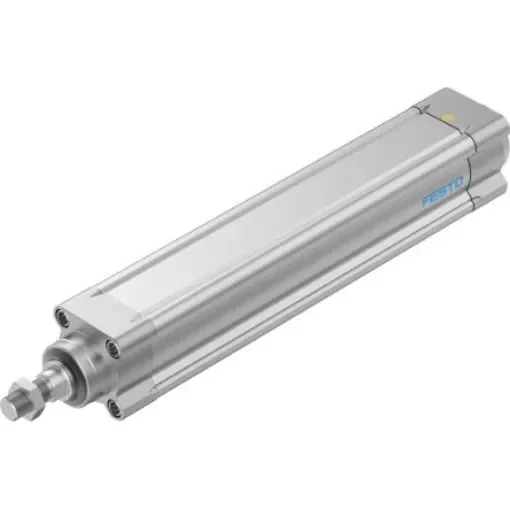

Festo Rod Linear Actuator, 100mm, 500kg, 330mm/s, 8022590 - ESBF-BS-50-100-5P
High-performance Festo rod linear actuator with 100mm stroke and 500kg load capacity.
Manufacturer part number: ESBF-BS-50-100-5P
GTIN: 4052568278434
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Rod Linear Actuator
Maximum Stroke Length = 100mm
Maximum Load = 500kg
Series = ESBF
Maximum Speed No Load = 330mm/s
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 8022590
The Festo ESBF series electric cylinder is a linear drive with ball screw in design for proximity sensor. It has a electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. A piston rod thread is M16x1.5.Size=50 Stroke=100 mm Reversing backlash=30 µm
