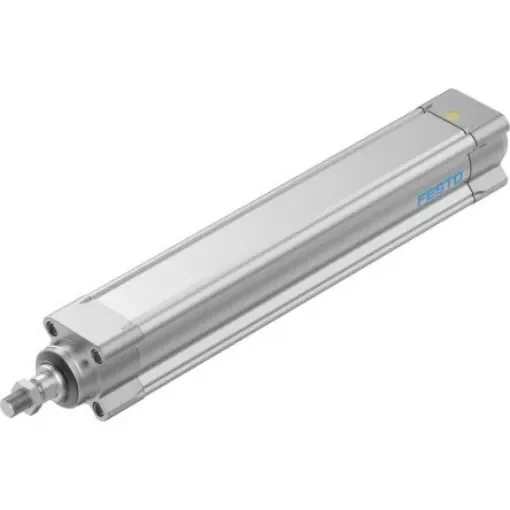

Festo Rod Linear Actuator, 100mm, 300kg, 420mm/s, 8022574 - ESBF-BS-40-100-5P
High-performance Festo rod linear actuator with 100mm stroke and 300kg load capacity.
Manufacturer part number: ESBF-BS-40-100-5P
GTIN: 4052568278298
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Rod Linear Actuator
Maximum Stroke Length = 100mm
Maximum Load = 300kg
Series = ESBF
Maximum Speed No Load = 420mm/s
Motor Technology = Servo Motor, Stepper Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 8022574
The Festo ESBF series electric cylinder is a linear drive with ball screw in design for proximity sensor. It has a electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. A piston rod thread is M12x1.25.Size=40 Stroke=100 mm Reversing backlash=30 µm
