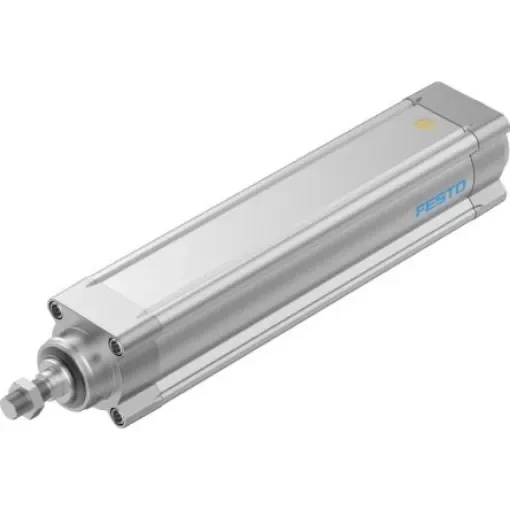

Festo Rod Linear Actuator, 100mm, 270mm/s, 574093 - ESBF-BS-63-100-5P
High-performance Festo rod linear actuator with 100mm stroke and 270mm/s speed for precise motion control.
Manufacturer part number: ESBF-BS-63-100-5P
GTIN: 4052568221904
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Rod Linear Actuator
Maximum Stroke Length = 100mm
Series = ESBF
Maximum Speed No Load = 270mm/s
Motor Technology = Servo Motor
Duty Cycle = 100%
IP Rating = IP40
Model Number = 574093
The Festo ESBF series electric cylinder is a linear drive with ball screw in design for proximity sensor. It has a electrically actuated spindle that converts the rotary motion of the motor into linear motion of the piston rod. A piston rod thread is M16x1.5.Size=63 Stroke=100 mm Reversing backlash=30 µm
