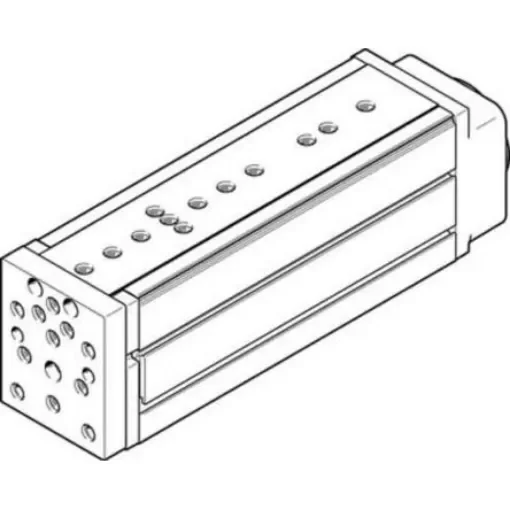

Festo Rod Linear Actuator, 100mm, 14kg, 562230 - EGSL-BS-75-100-10P
Compact and efficient, this Festo rod linear actuator delivers precise motion with a 100mm stroke and 14kg load capacity.
Manufacturer part number:
EGSL-BS-75-100-10P
GTIN:
4052568209032
Only Ships to:
France, Monaco
For shipping outside these regions, please contact customer support.
Actuator Type = Rod Linear Actuator
Maximum Stroke Length = 100mm
Maximum Load = 14kg
Series = EGSL
Model Number = 562230
The Festo EGSL series mini slide with recirculating ball bearing spindle design structure for proximity sensor. The mini slide is parallel running in the z-direction of 0.04 mm.Size=75 Parallelism=0.05 mm Reversing backlash=<= 50 µm
