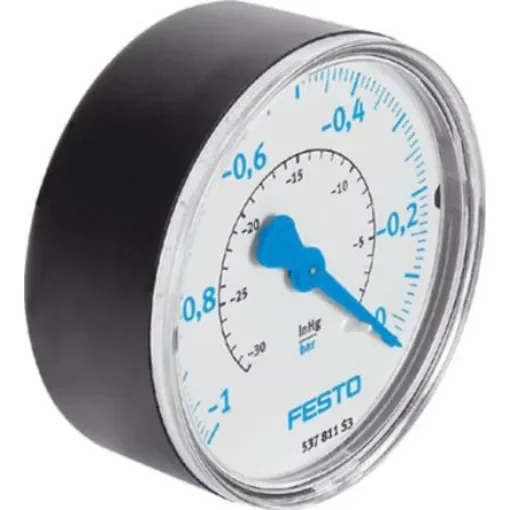

Festo R 1/4 Analogue Pressure Gauge 0bar Back Entry 63mm Outside Diameter - VAM-63-V1/0-R1/4-EN

Festo Vacuum Pressure Gauge, 0 bar - VAM Series - VAM-63-V1/0-R1/4-EN This vacuum gauge from Festo lets you take accurate readings of pressure at levels lower than the ambient atmospheric pressure. The Bourdon-tube-style unit doesnt require power to operate and offers a long service life. It has an extremely strong thermoplastic housing thats resistant to chemical corrosion and is suitable for use in harsh environments. The duel-scale gauge delivers pressure readings in bar, psi (pounds per square inch) and inHg (inches of mercury).• Gauge outside diameter of 63 mm • Maximum pressure measurement of 0 bar • Operating pressure range of -1 bar to 0 bar • Pneumatic connection type of R1/4 • Can be assembled in any position • Front-panel installation mounting type • Rear-side central connecting position • Ambient temperature range of -10°C to +60 °C • Weight of 83 g Range Information • The VAM range of vacuum pressure gauges from Festo is suitable for either front-panel mounting or in-line installation • The components feature analogue displays. Some also have an adjustable red and green indicator reading range to provide extra safety when monitoring compressed air applications • The units can be loaded up to three-quarters of their full-scale value under a static load and up to two-thirds under intermittent load conditionsThe Festo vacuum gauge used bourdon-tube pressure gauge design structure which assembled in any position. Its nominal size of pressure gauge is 63 which used operating pressure up to -1 to 0 bar. The pneumatic connection is R1/4 using with front panel mounting type.Ambient temperature -10 to 60 °C Used acrylonitrile butadiene styrene material Product weight 83 g
