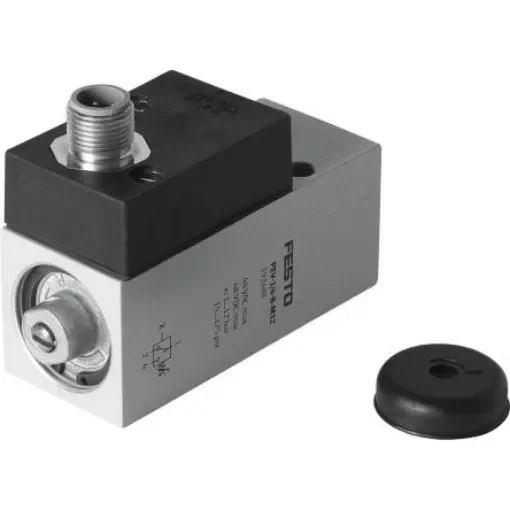

Festo Pressure Switch, G 1/4 1bar to 12 bar - PEV-1/4-B-M12
Reliable Festo pressure switch for compressed air and water, operating from 1 to 12 bar.
Manufacturer part number: PEV-1/4-B-M12
GTIN: 4052568007966
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Operating Pressure = 12 bar
Minimum Operating Pressure = 1bar
Pressure Type = Relative Pressure
Connection = G 1/4
Suitable Media = Compressed Air, Water
Type = Pressure Switch
Voltage Rating = 48V
Connection Thread Size = 1/4 in
Manufacturer Series = PEV
Contact Operation = Normally Closed, Normally Open
Connection Thread Standard = G
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +80°C
IP Rating = IP65
Output Type = Analogue Output
PEV-1/4-B-M12 Switching element function - Changeover switch Max. switching frequency - 3 Hz Max. switching output voltage AC - 48 V Max. switching output voltage DC - 48 V Max. output current - 4,000 mA Electrical connection – Plug, Round design to EN 60947-5-2, M12x1, 4-pin Pneumatic connection – G1/4 Material housing – Aluminium die cast
