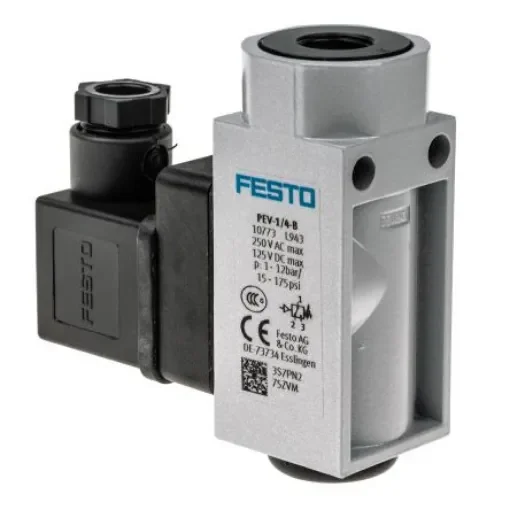

Festo Pressure Switch, G 1/4 1bar to 12 bar - PEV-1/4-B
Reliable Festo pressure switch for precise pressure control from 1bar to 12bar.
Manufacturer part number: PEV-1/4-B
GTIN: 4052568002299
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Maximum Operating Pressure = 12 bar
Minimum Operating Pressure = 1bar
Pressure Type = Relative Pressure
Connection = G 1/4
Connection Thread Size = 1/4 in
Manufacturer Series = PEV
Connection Thread Standard = G
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +80°C
IP Rating = IP65
PEV-1/4-B Switching element function - Changeover switch Max. switching frequency - 3 Hz Max. switching output voltage AC - 250 V Max. switching output voltage DC - 125 V Max. output current - 5,000 mA Electrical connection – Plug, Cubic design to DIN 43650, Plug pattern type A to EN 175301-803 Pneumatic connection – G1/4 Material housing – Aluminium die cast
