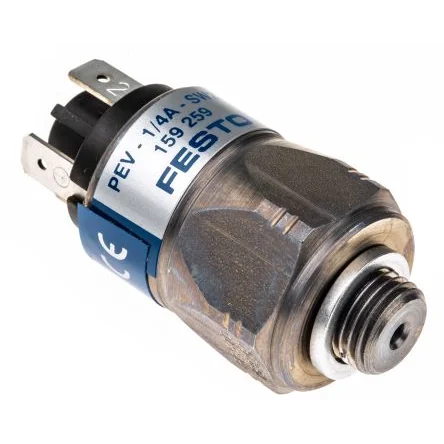

Festo Pressure Switch, G 1/4 1bar to 10bar - PEV-1/4-A-SW27

Maximum Operating Pressure = 10bar
Minimum Operating Pressure = 1bar
Pressure Type = Relative Pressure
Connection = G 1/4
Type = Pressure Switch
Voltage Rating = 250V
Minimum Operating Temperature = -20°C
Maximum Operating Temperature = +100°C
IP Rating = IP65
Minimum Pressure Setting = 1bar

PEV-1/4-A-SW27 Pressure measuring range - 1 .. 10 bar Operating pressure - 1 .. 10 bar Switching element function - Changeover switch Max. switching frequency - 3 Hz Max. switching output voltage AC - 250 V Max. switching output voltage DC - 250 V Max. output current - 4,000 mA Electrical connection – Plug, 4 pin Pneumatic connection – G1/4 Material housing – galvanized steel
