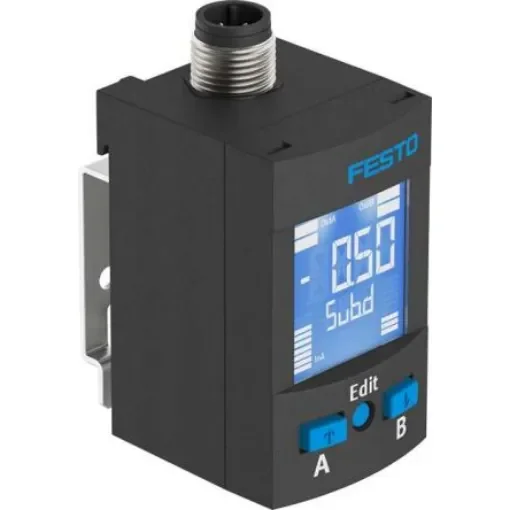

Festo Pressure Sensor, 30V dc, IP65, IP67 10bar - SPAU-P10R-W-G18FD-L-PNLK-PNVBA-M12U

Suitable Media = Air, Gas
Maximum Operating Pressure = 10bar
Minimum Operating Pressure = 0bar
Port Connection = G 1/8
Supply Voltage = 30V dc
IP Rating = IP65, IP67
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C

Festo Pressure SensorThe Festo SPAU series pressure sensor is designed to monitor pressure of compressed air and non-corrosive gases. It works on 30V supply voltage. The sensor measures the pressure in range of 0bar to 10bar. It has a switchable element function with normally open or closed contact. The sensor has a G1/8 top pneumatic connection.Features and Benefits• Service temperature ranges between 0°C and 50°C • Input signal converted to digital switching signal • Switching electrical output is of NPN or PNP type • Accuracy is ±1.5% FS • Wall mounting with female thread • M12x1 4-pin round plug connector electrical connection • Illuminated LCD backlight displayApplications• Network and regulator monitoring • Air-pressure test • Object detection via back pressureCertifications• UL approved • IP65 rated • IP67 rated
