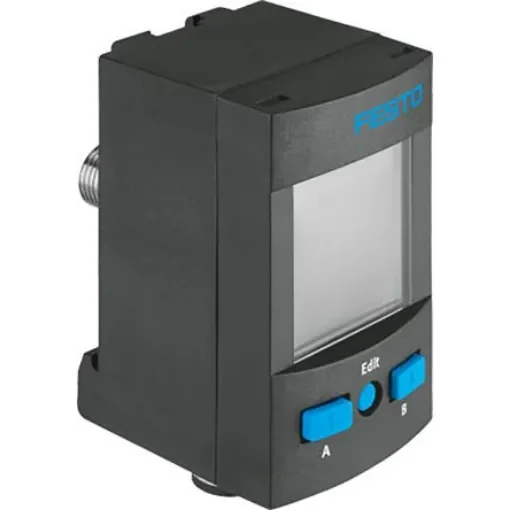

Festo Pressure Sensor, 30V dc, IP65, IP67 10bar - SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8D
Monitor compressed air pressure with Festo's durable 10bar sensor, featuring IP65/IP67 ratings.
Manufacturer part number: SPAU-P10R-T-R14M-L-PNLK-PNVBA-M8D
GTIN: 4052568276867
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Suitable Media = Air, Gas
Maximum Operating Pressure = 10bar
Minimum Operating Pressure = 0bar
Supply Voltage = 30V dc
IP Rating = IP65, IP67
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Festo Pressure SensorThe Festo SPAU series pressure sensor is designed to monitor pressure of compressed air system. It works on 30V supply voltage. The sensor measures the pressure in the range of 0bar to 10bar. It has a switchable element function with normally open or normally closed contact. This sensor has R1/4 pneumatic connection.Features and Benefits• Service temperature ranges between 0°C and 50°C • Input signal converted to digital switching signal • Switching electrical output is 2xNPN or 2xPNP type • Accuracy is ±1.5% FS • Threaded mounting • M8x1 4-pin round plug connector electrical connection • Illuminated LCD displayApplications• Network and regulator monitoring • Air-pressure test • Object detection via back pressureCertifications• UL approved • IP65 rated • IP67 rated
