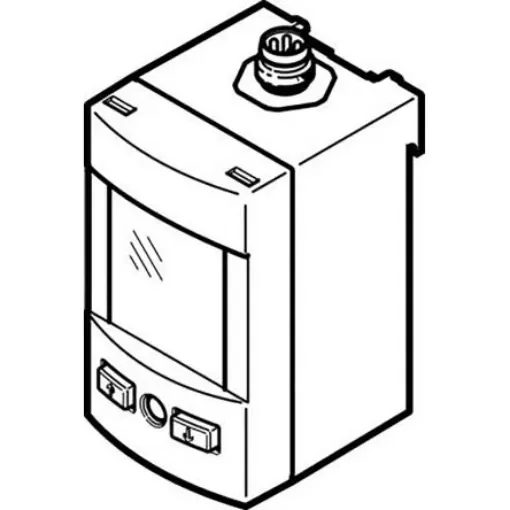

Festo Pressure Sensor, 30V dc, IP65, IP67 10bar - SPAU-P10R-H-Q4D-L-PNLK-PNVBA-M12D
Monitor air and gas pressure with Festo's durable 10bar pressure sensor.
Manufacturer part number: SPAU-P10R-H-Q4D-L-PNLK-PNVBA-M12D
GTIN: 4052568276898
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Suitable Media = Air, Gas
Minimum Operating Pressure = 0bar
Supply Voltage = 30V dc
IP Rating = IP65, IP67
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Festo Pressure SensorThe Festo SPAU series pressure sensor is designed to monitor pressure of compressed air and non-corrosive gases. It works on 30V supply voltage. The sensor measures the pressure in the range of 0bar to 10bar. It has a switchable element function with normally open or normally closed contact. This sensor has a push-in connector of 4mm.Features and Benefits• Service temperature ranges between 0°C and 50°C • Input signal converted to digital switching signal • Switching electrical output is 2xNPN or 2xPNP type • Accuracy is ±1.5% FS • Top-hat rail mounting • M12x1 4-pin round plug connector electrical connection • Illuminated LCD displayApplications• Network and regulator monitoring • Air-pressure test • Object detection via back pressureCertifications• UL approved • IP65 rated • IP67 rated
